55" Boxed Standard Shock Spacing Link Arm from JEHC
Details

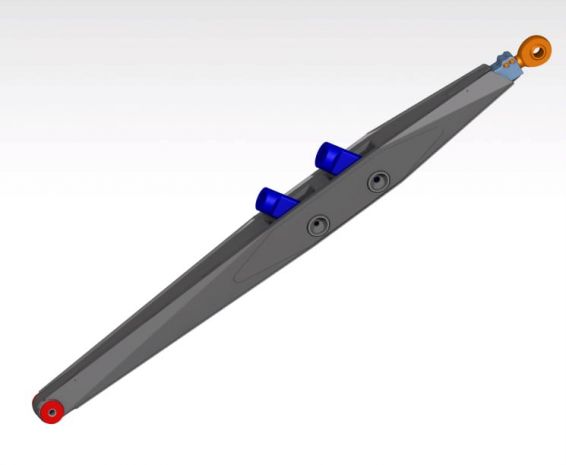

These 55" Boxed Link arms are the perfect start to a linked truck project, even for the beginner. They are designed to be fabrication friendly with several options, from mild steel MIG welded to Chromoly 4130 TIG welded. You also have the option of running various front and rear pivot choices, the front (chassis) pivot can run a bushing assembly or a 1" uni-ball bearing assembly. The rear pivot (housing side) can run either a race square pinch bolt bung or a standard threaded bung with jam nut.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Luxury Prerunner / Prerunner |
|---|---|
| Part Family | Boxed / Clevis / Tube Link Arms & Trailing Arms |
| Position | Chassis-side vs housing-side (panhard / link mounts) |
| Build System | Link suspension (general rod-end / uniball link) |
Frequently Asked Questions
These are downloadable DXF cut files for the boxed link arm plates, so you cut them flat on your plasma, laser, or waterjet and then box and weld them up. If you need a shop to cut them for you, just email us and we'll point you to one we trust.
You can go either way — they're designed fab-friendly for mild steel MIG welded or chromoly 4130 TIG welded, so it's your call on the build. Pick the material that fits your project and skill level.
Up front at the chassis side you can run a bushing assembly or a 1" uni-ball bearing setup, and on the rear housing side you've got the choice of a race square pinch bolt bung or a standard threaded bung with a jam nut. That gives you some flexibility depending on how you're setting up your link.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 55" Boxed Standard Shock Spacing Link Arm from JEHC is $68.00.
This 55" Boxed Standard Shock Spacing Link Arm from JEHC is brought to you by JEHC. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Boxed Link Arms plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Boxed Link Arms category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Desert Racing / Pre-runner Link Arms, including Boxed Link Arms, all designed by working fab shops. Browse the Desert Racing / Pre-runner Link Arms section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
