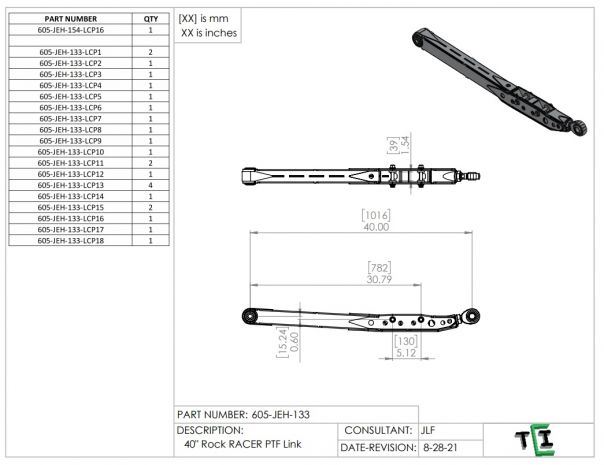

40" DUAL Shock Rock Racer Link Arm - PTF
This trailing arm is designed to run a dual shock setup, with shock mounting hole diameter of 1/2" with the option to open the mounting hole to 5/8". Cut out of predominantly 3/16" material, these links don't require bending of plates. Their lower profile layout allows for improved clearance over the trail in the toughest conditions. Designed around the 1" uni-ball bearing wobble stopper kits (front chassis pivot) and 1.25" rod end pack sold on Diyoffroad.com under the fabrication / hard parts section of the site.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
Frequently Asked Questions
These are PTF (Plasma Table Friendly), so they're cut out of mostly 3/16" flat plate with little to no bending required. You just follow the WPO (weld process order) to keep the strength right when you assemble and weld them up.
They're set up for a dual shock layout with a 1/2" shock mounting hole that you can open up to 5/8". The front chassis pivot is designed around the 1" uni-ball wobble stopper kit and the 1.25" rod end pack, both of which we sell under the fabrication / hard parts section on Diyoffroad.com.
You're buying the digital cutting files (DXF) or CAD files so you can have the plates cut on a CNC plasma, laser, or waterjet. They're designed to be cut predominantly out of 3/16" material. If you need a shop to cut them, shoot us an email and we'll point you to one we recommend.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 40" DUAL Shock Rock Racer Link Arm - PTF is $64.00.
This 40" DUAL Shock Rock Racer Link Arm - PTF is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Dual Shock Rock Racer Link Arms plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Dual Shock Rock Racer Link Arms category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Rock-Racer Link Arms, including Dual Shock Rock Racer Link Arms, all designed by working fab shops. Browse the Rock-Racer Link Arms section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
