4 Link Mounts for Universal Truss - Plasma Table Friendly
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly - This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Upper / Lower Link Mounts (housing-mounted) |
| Position | Straight (0 deg) vs angled (10 / 20 / 34 / 45 deg) mount geometry |
| Build System | 4-link rear |
Frequently Asked Questions

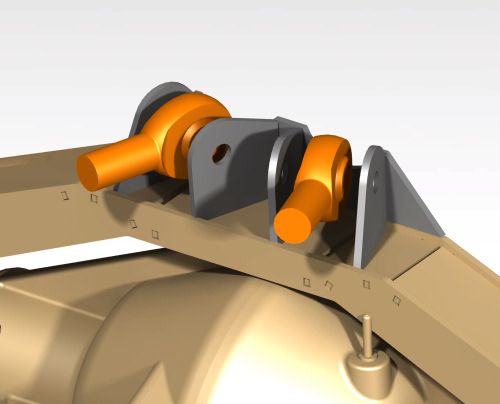

These are designed specifically to pair with the Universal Truss, with the tabs set at about 40 degrees (20 per side). If you're running something else, shoot us an email and we'll see if another file fits your build.
They're plasma table friendly, meaning it's all flat plate with no bends. Just follow the WPO during assembly so you keep the strength, and you're good to weld them in.
The mounts come with 2.75" spacers set up for 1.25" rod ends on a 3/4" bolt. After payment you'll get the DXF files to run on your plasma, laser, or waterjet.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 4 Link Mounts for Universal Truss - Plasma Table Friendly is $8.00.
The 4 Link Mounts for Universal Truss - Plasma Table Friendly is offered through the DIY Off Road marketplace, featuring cut-file designs from fabricators including All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for 10 Bolt (GMT800) Rear End Components plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the 10 Bolt (GMT800) Rear End Components category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across 99-06 Silverado 1500 GMT800, including 10 Bolt (GMT800) Rear End Components, all designed by working fab shops. Browse the 99-06 Silverado 1500 GMT800 section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
