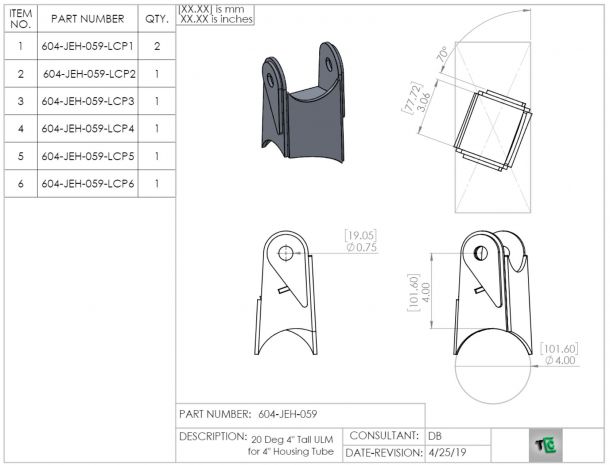

4.0" Tube 4" Height Upper Link Mount "Angled" (20 deg)
***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly – This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
| Seller | JEH Consulting INC |
|---|
Frequently Asked Questions
These are cut to wrap a 4.0" housing tube, so they're meant to mount off a 4" diameter tube. If your axle uses a different tube size, shoot us an email and we'll see if we've got a file that matches your housing.
You're getting the DXF cut files, so you'll run them on a plasma, laser, or waterjet and then press the bends yourself. The 20 deg angle is built into the file so you've just gotta fold them at the bend lines and weld them on.
The files give you the flat profile, so you can run them in whatever plate thickness you're building to. If you're not sure what gauge makes sense for your link setup, email us and we can point you in the right direction or hook you up with the designer.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 4.0" Tube 4" Height Upper Link Mount "Angled" (20 deg) is $9.00.
