3.25" Tube 7" Height Upper Link Mount "Angled" (10 deg)
***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly – This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
| Seller | JEH Consulting INC |
|---|
Frequently Asked Questions
We don't spec a set thickness on the file — it depends on your link size and how much abuse your build sees. Most guys run these out of plate heavy enough to handle the load, so cut what fits your application; email us if you want a recommendation for your setup.

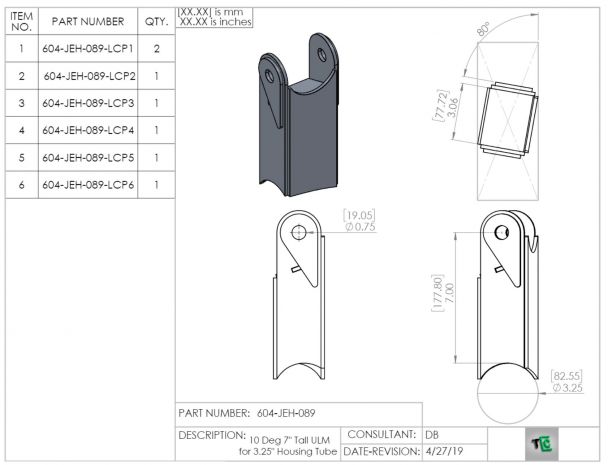

These files are cut for a 3.25" tube with the 7" height and 10 degree angle. If you need a different tube diameter, shoot us an email and we'll see if Tekk has a file that matches your housing.
These need to be bent (press) after they're cut — they're angled mounts so there's a press step before you weld them onto your housing tube. Run the DXF on a plasma, laser, or waterjet, bend the plates, then weld them in. Need a shop to cut and bend? Email us for a recommendation.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 3.25" Tube 7" Height Upper Link Mount "Angled" (10 deg) is $9.00.
