Upper Link Mount for boxed frame 1.25" rod end on 5/8 bolt 20deg. PTF
This mount is Plasma Table Freindly.
PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
More Information
| Seller | Jason Heard |
|---|
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Upper / Lower Link Mounts (housing-mounted) |
| Position | Upper (upper control arm / upper link mount) |
| Build System | 4-link rear |
Frequently Asked Questions
Yep, this one's PTF (Plasma Table Friendly), so it's mostly or all flat plate with little to no bends. Just follow the included WPO steps when you assemble it so the strength stays where it needs to be.

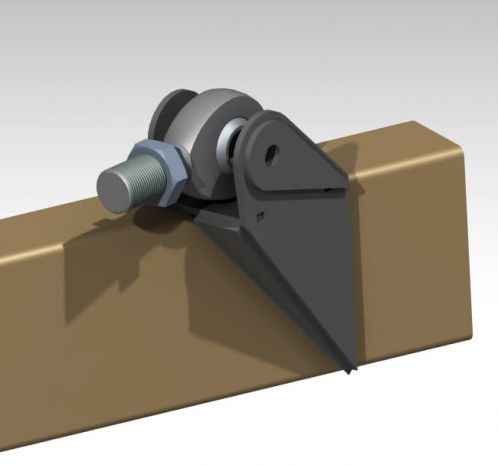

That's exactly what it's designed for. It locates the 1.25" rod end about 1.75" above the frame on a 5/8 bolt, with a built-in 20 degree kick to help your 4-link angles.
This is a digital download, so you're getting the DXF (or CAD) cut files only. Take them to a CNC plasma, laser, or waterjet to have the plates cut, then weld it into the interior of your boxed frame rail. If you need a shop to cut them, email us and we'll point you to one.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The Upper Link Mount for boxed frame 1.25" rod end on 5/8 bolt 20deg. PTF is $12.00.
This Upper Link Mount for boxed frame 1.25" rod end on 5/8 bolt 20deg. PTF is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Upper link Chassis mounts plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Upper link Chassis mounts category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Link Suspension Components, including Upper link Chassis mounts, all designed by working fab shops. Browse the Link Suspension Components section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
