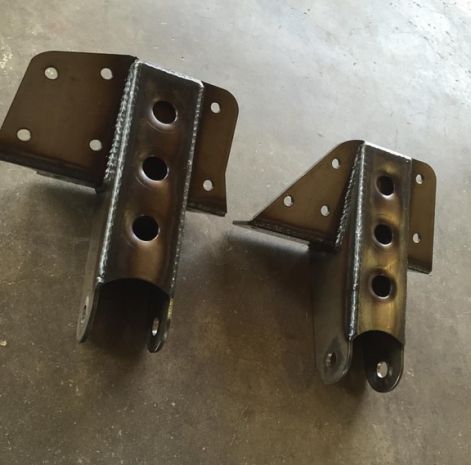

Universal / Ranger Beam Mounts - Plasma Table Ready
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly - This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | Jason Heard |
|---|
Specifications
| Platform | Ford Ranger |
|---|---|
| Part Family | Radius-Arm / Beam Chassis Mounts (caster + offset set) |
| Position | Front suspension |
| Build System | I-beam / Twin I-Beam (TTB) |
Frequently Asked Questions
They were originally designed for 97 and older Ford Rangers but they're meant to work as a universal beam mount on various other vehicles. If you've got a specific build in mind, shoot us an email and we'll help you figure out if it'll fit your setup.
These are flat plate with no bends, so they're plasma table friendly and easy to cut and assemble. Just make sure you follow the WPO steps so you keep the strength in the component.
They're designed for 1.25" rod ends with 2.625" width spacers running on 3/4" bolts. You'll get the DXF cut files to have the plates cut from a CNC plasma, laser, or waterjet and then put together per the WPO.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The Universal / Ranger Beam Mounts - Plasma Table Ready is $46.00.
This Universal / Ranger Beam Mounts - Plasma Table Ready is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for D44 / Universal Beam Components from Baker Fabrication plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the D44 / Universal Beam Components from Baker Fabrication category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across I-Beam Suspension, including D44 / Universal Beam Components from Baker Fabrication, all designed by working fab shops. Browse the I-Beam Suspension section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
