83-92 Ford Ranger Solid Body Mounts for EXT Cab

83-92 Ford Ranger Solid Body Mounts for EXT Cab

Be the first to review this product

$18.00

In stock

SKU

603-JEH-066

Details

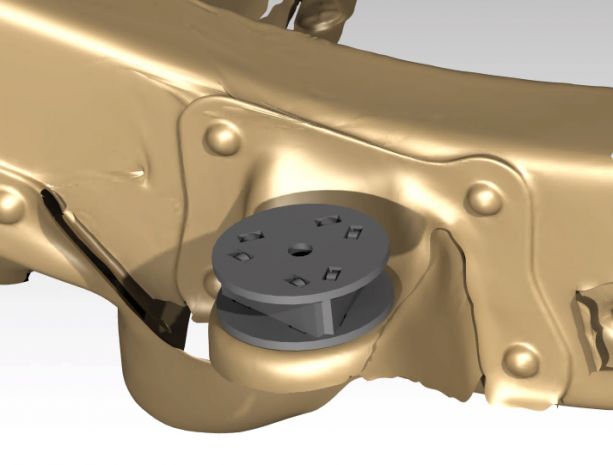

These body mounts are perfect for when you cage your truck, they provide the perfect platform for a stable and secure cab-chassis mount that will not allow the cab to move over time relative to the cage structure. A must for any professional built prerunner. ***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.*** PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.

More Information

More Information
Seller	TEKK Consulting

Specifications

Platform	Ford Ranger
Part Family	Body / Cab Mounts (solid body mount)
Build System	Plasma Table Friendly (PTF) flat-plate, no-bend

Frequently Asked Questions

Will these work on the standard cab Ranger too, or just the extended cab?

These are drawn specifically for the 83-92 Ranger EXT cab. If you're running a standard cab, shoot us an email and we'll see if there's another file that fits your build.

Are these flat plates I can just run on my plasma table, or do they need bending?

These are PTF (Plasma Table Friendly), so it's mostly or all flat plate with little to no bends — easy to cut and assemble on a plasma table. Just follow the WPO so you keep the strength when you weld them up.

What do I actually get when I buy this, a physical mount or files?

This is a digital download — you're getting the DXF cut files (or solid CAD) so you can have these plates cut on a CNC plasma, laser, or waterjet and weld them into your build. No physical part ships.

How do I get the 83-92 Ford Ranger Solid Body Mounts for EXT Cab after I buy it?

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

How much does the 83-92 Ford Ranger Solid Body Mounts for EXT Cab cost?

The 83-92 Ford Ranger Solid Body Mounts for EXT Cab is $18.00.

Who designs the 83-92 Ford Ranger Solid Body Mounts for EXT Cab?

This 83-92 Ford Ranger Solid Body Mounts for EXT Cab is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.

Where can I get cut files for Solid Body Mount OEM Replacements?

DIY Off Road has downloadable DXF cut files for Solid Body Mount OEM Replacements plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Solid Body Mount OEM Replacements category, or shoot us an email and we will point you to the right files for your build.

Do you have Bumpers, Frame Horns, and Body Mounts cut files for an off-road or race build?

Yeah — DIY Off Road carries downloadable DXF cut files across Bumpers, Frame Horns, and Body Mounts, including Solid Body Mount OEM Replacements, all designed by working fab shops. Browse the Bumpers, Frame Horns, and Body Mounts section or email us and we will help you track down the right files.

Can you point me to a shop to get these cut and bent?

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

How do I get the files, and what do I do with them?

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Do I need to know how to weld and fab to use these?

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
