30" Width Universal Radius ARM Center Chassis Mount - PTF

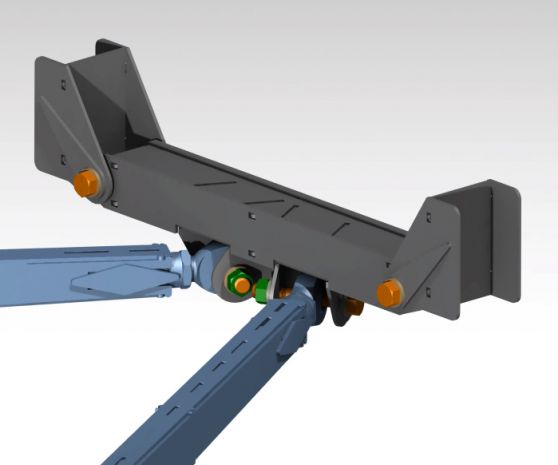

Universal Radius Arm CENTER CHASSIS Mount crossmember setup for 1.25" rod ends on 3" spread spacers with 3/4" bolts.
PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Details
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Radius-Arm / Beam Chassis Mounts (caster + offset set) |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
It's PTF (Plasma Table Friendly), so it's designed with little to no bends — mostly or all flat plate to keep it easy to cut and assemble. Just make sure you follow the WPO steps so the strength stays right when you weld it together.
It's built for 1.25" rod ends running on 3" spread spacers with 3/4" bolts. If you're running something different, shoot us an email and we'll see if another file fits your setup better.
This is a digital download — you're buying the cut files (DXF) or CAD files, no physical part ships. You take the DXF and have the plates cut on your own CNC plasma, laser, or waterjet, then assemble per the WPO. If you need a shop to cut them for you, email us for a recommendation.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 30" Width Universal Radius ARM Center Chassis Mount - PTF is $24.00.
This 30" Width Universal Radius ARM Center Chassis Mount - PTF is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Universal Beam and Radius Arm Chassis Mounts plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Universal Beam and Radius Arm Chassis Mounts category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Universal Beam Components, including Universal Beam and Radius Arm Chassis Mounts, all designed by working fab shops. Browse the Universal Beam Components section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
