Center Mount Radius Arm Beam Brackets - 10 Deg - PTF
Details

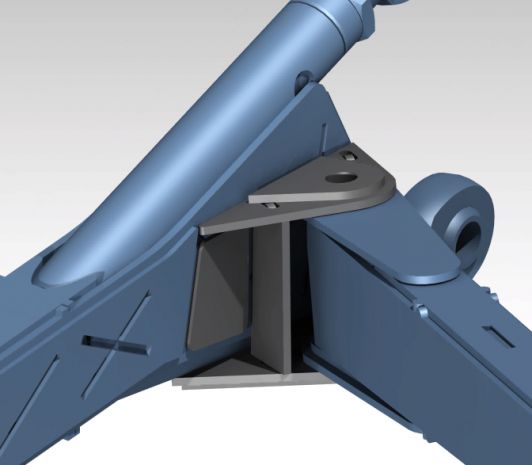

This bracket is designed for center mounted radius arms that mount toward the center of the chassis and not on the side/under the frame rails like traditional radius arms. Setup for 10 degrees of caster at ride height these brackets work with the JEHC universal beams and radius arms.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Radius-Arm / Beam Chassis Mounts (caster + offset set) |
| Position | Front suspension |
| Build System | Radius-arm front |
Frequently Asked Questions
These are set up to work with the JEHC universal beams and radius arms, and they're for center-mounted arms that sit toward the center of the chassis instead of out on the frame rails. If you're running a different beam/arm setup, shoot us an email and we'll see if another file fits your build.
Yep, these are PTF (Plasma Table Friendly), so they're mostly or all flat plate with little to no bends, which makes cutting and assembly easy on a plasma table. Just make sure you follow the WPO steps so you keep the strength in the part.
These brackets are designed for 10 degrees of caster at ride height, so that's what this file is built around. If you need a different caster setting, email us and we'll check whether there's another file that'll work for your setup.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The Center Mount Radius Arm Beam Brackets - 10 Deg - PTF is $18.00.
This Center Mount Radius Arm Beam Brackets - 10 Deg - PTF is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Universal Beam and Radius Arm Chassis Mounts plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Universal Beam and Radius Arm Chassis Mounts category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Universal Beam Components, including Universal Beam and Radius Arm Chassis Mounts, all designed by working fab shops. Browse the Universal Beam Components section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
