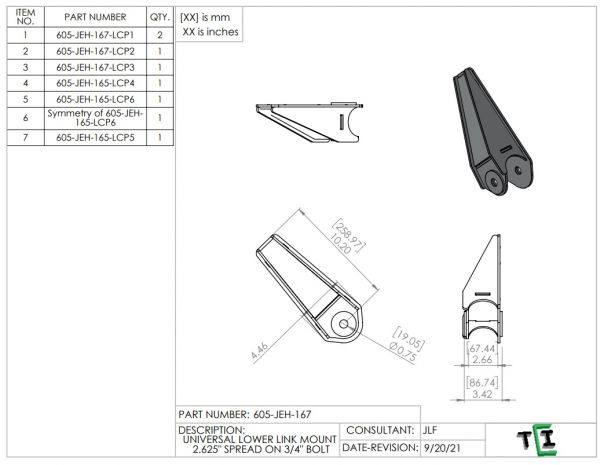

UNIVERSAL LOWER LINK MOUNT 2.625" SPREAD ON 3/4" BOLT
These plasma table friendly link mounts are easy to fabricate and will mount to the side of just about any frame rail for a variety of link suspension applications.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
Details
These plasma table friendly link mounts are easy to fabricate and will mount to the side of just about any frame rail for a variety of link suspension applications.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Link Pockets / Chassis Link Mounts (frame-rail) |
| Position | Lower (lower control arm / lower link mount) |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
The files are designed plate-friendly so you can run them on a plasma, laser, or waterjet, but make sure you follow the included WPO (weld procedure/order) since specific steps are required to keep the strength in this part. We don't list a set thickness here, so shoot us an email if you want a recommendation for your link setup.
These are universal mounts, so they'll bolt up to the side of just about any frame rail for a variety of link suspension builds. They're built around a 2.625" spread on a 3/4" bolt, so just confirm that matches your link hardware before you cut them.
They're PTF (Plasma Table Friendly), meaning little to no bends and mostly flat plate, so they're easy to cut and assemble even if you only have a plasma table. Just follow the WPO when you weld them into your frame so you don't lose any strength.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The UNIVERSAL LOWER LINK MOUNT 2.625" SPREAD ON 3/4" BOLT is $14.00.
This UNIVERSAL LOWER LINK MOUNT 2.625" SPREAD ON 3/4" BOLT is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Lower Link Arm Mounts plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Lower Link Arm Mounts category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Mounts and Accessories, including Lower Link Arm Mounts, all designed by working fab shops. Browse the Mounts and Accessories section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
