Tilted 42" Spare Trophy Truck Rear Clip 44" Width

Tilted 42" Spare Trophy Truck Rear Clip 44" Width

Be the first to review this product

$800.00

In stock

SKU

600-JEH-138

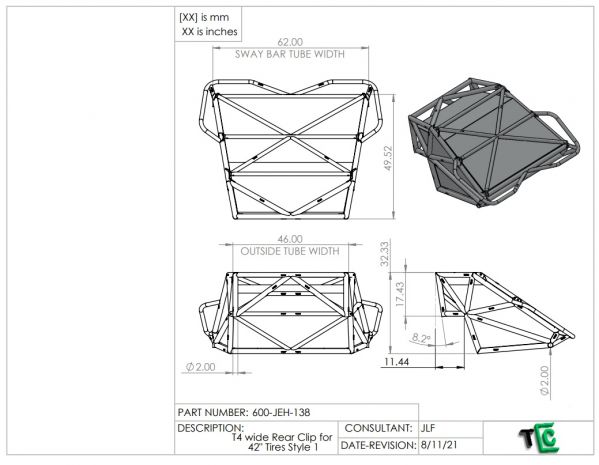

This rear clip is designed for tube chassis design and developed for race/high end prerunner applications. These files comes with the tubes ready for laser, the plates needed for the assembly, mock up fuel cell size and location, along with a fixture to build the assembly (including table). Setup for 42” tires at full compression and rear sway bar mount built into the rear lower cross tube. ***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***

Details

More Information

More Information
Seller	TEKK Consulting

Specifications

Platform	Trophy Truck / Trick Truck (TT)
Part Family	Rear / Front Clips & Backhalf Sections
Position	Rear suspension
Build System	Tube chassis / roll cage
