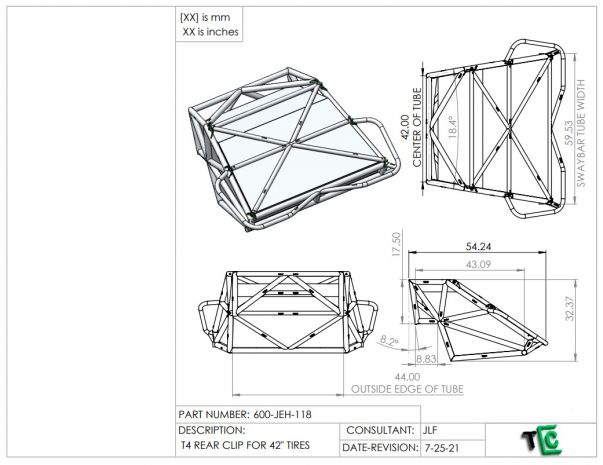

Tilted 42" Spare Trophy Truck Rear Clip 42" Width

It comes with everything — the tubes ready for laser, all the assembly plates, plus a fixture (including the table) to build the clip on. There's also a mock-up fuel cell size and location built into the files so you know what you're working around.

Yep, it's designed around 42" tires at full compression. It also has the rear sway bar mount built right into the lower cross tube so you don't have to figure that part out yourself.

You can run them on a CNC plasma, laser, or waterjet — whatever you've got access to. The tubes are set up for laser and the plates are meant to be cut and bent (press), so just have them cut from whichever machine works for your build.

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

The Tilted 42" Spare Trophy Truck Rear Clip 42" Width is $800.00.

This Tilted 42" Spare Trophy Truck Rear Clip 42" Width is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.

DIY Off Road has downloadable DXF cut files for Tube Chassis Rear Clips plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Tube Chassis Rear Clips category, or shoot us an email and we will point you to the right files for your build.

Yeah — DIY Off Road carries downloadable DXF cut files across Race Truck Tube Chassis Sections / Components, including Tube Chassis Rear Clips, all designed by working fab shops. Browse the Race Truck Tube Chassis Sections / Components section or email us and we will help you track down the right files.

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
