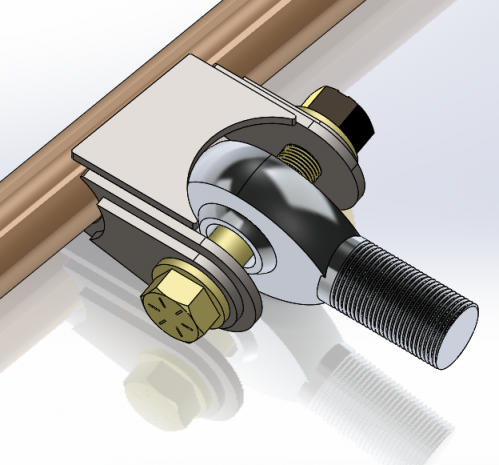

SINGLE 10* LINK PIVOT - 1.5" ROUND TUBING - 9/16" HOLE - PTF
***These products are Digital Assets. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly – This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
Frequently Asked Questions
These are made to weld onto 1.5" round tubing. They're designed for that diameter, so if you're running a different tube size shoot us an email and we'll see if another file works for your build.
They're designed to be cut from 3/16" material. Run the DXF on your plasma, laser, or waterjet and you're good to go.
These are Plasma Table Friendly, so no bends at all — all flat plate. Just follow the WPO for the assembly steps and corner welds to keep the strength, and they're mig-friendly to weld up.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The SINGLE 10* LINK PIVOT - 1.5" ROUND TUBING - 9/16" HOLE - PTF is $9.00.
This SINGLE 10* LINK PIVOT - 1.5" ROUND TUBING - 9/16" HOLE - PTF is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for 1.25" Rod End Horizontal Single Link Mount - Plasma Table Friendly plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the 1.25" Rod End Horizontal Single Link Mount - Plasma Table Friendly category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Race/Play Tube Chassis Link Mounts, including 1.25" Rod End Horizontal Single Link Mount - Plasma Table Friendly, all designed by working fab shops. Browse the Race/Play Tube Chassis Link Mounts section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
