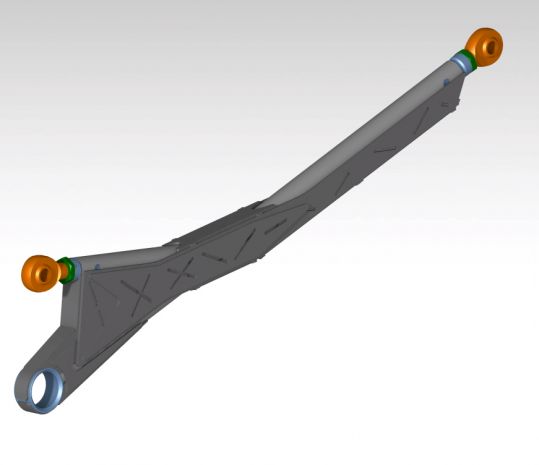

HD Universal 1.5" Bearing Beam - Fullsize 91"+ Trackwidth - PTF
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly - This means that the component is designed with no/minimal bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Universal I-Beams / Twin I-Beam (TTB) Beams |
| Position | Lower (lower control arm / lower link mount) |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
These are Plasma Table Friendly, so they're designed with no/minimal bends and all flat plate to make cutting and assembly easy. Just make sure you follow the WPO steps so you keep the strength in the finished beam.
This one's designed for a fullsize trackwidth of 91 inches or wider, so it's meant for the big fullsize trucks. If your build runs a different trackwidth, shoot us an email and we'll see if another file fits your setup.
It's built around a 1.5" uni-ball bearing for the lower upright mounts, so it's all set up for that bearing size. You're buying the DXF cut files for the component so you can run them on a plasma, laser, or waterjet and have the plates cut and bent yourself.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The HD Universal 1.5" Bearing Beam - Fullsize 91"+ Trackwidth - PTF is $92.00.
This HD Universal 1.5" Bearing Beam - Fullsize 91"+ Trackwidth - PTF is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for 1.5" Uni-Ball Lower Universal Beams and Uprights plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the 1.5" Uni-Ball Lower Universal Beams and Uprights category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Universal Beam Components, including 1.5" Uni-Ball Lower Universal Beams and Uprights, all designed by working fab shops. Browse the Universal Beam Components section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
