Ford Ranger - Bolt in Bed Cage

Be the first to review this product

$250.00

In stock

SKU

ARM-1853-ELL-005

Details

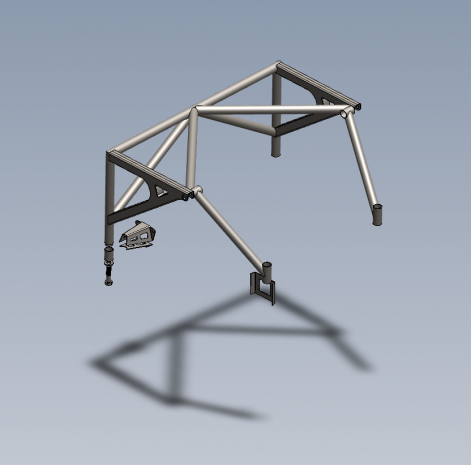

2008 Ford Ranger bolt in bed cage.

***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***

More Information

More Information
Seller	TEKK Consulting

Specifications

Platform	Ford Ranger
Part Family	Bed Cages / Bolt-In Cages / Roll Cages
Build System	Plasma Table Friendly (PTF) flat-plate, no-bend

Frequently Asked Questions

Are these files set up for the 2008 Ranger only, or will they work on other year Rangers too?

The files are designed around the 2008 Ford Ranger bed. If you're running a different year, shoot us an email and we'll check whether this file lines up with your bed or if there's another one that fits your build.

Does this bed cage bolt in or do I have to weld it into the bed?

It's designed as a bolt-in bed cage, so no welding into the bed needed. Just keep in mind you're getting the DXF cut files here, not a finished cage.

Do these plates need to be bent after I cut them, or are they flat parts?

Some of these plates are meant to be cut and then press bent, so you'll want a press brake or a shop that can do the bends. If you don't have a way to bend them, email us and we can recommend a shop to cut and bend them for you.

How do I get the Ford Ranger - Bolt in Bed Cage after I buy it?

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

How much does the Ford Ranger - Bolt in Bed Cage cost?

The Ford Ranger - Bolt in Bed Cage is $250.00.

Who designs the Ford Ranger - Bolt in Bed Cage ?

This Ford Ranger - Bolt in Bed Cage is brought to you by Armada Engineering. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models, Superioroffroaddesigns and Velocity Fab. Need a custom part designed? Email us and we will connect you with the right designer.

Where can I get cut files for Vehicle Specific?

DIY Off Road has downloadable DXF cut files for Vehicle Specific plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Vehicle Specific category, or shoot us an email and we will point you to the right files for your build.

Do you have Default MuscleCar cut files for an off-road or race build?

Yeah — DIY Off Road carries downloadable DXF cut files across Default MuscleCar, including Vehicle Specific, all designed by working fab shops. Browse the Default MuscleCar section or email us and we will help you track down the right files.

Can you point me to a shop to get these cut and bent?

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

How do I get the files, and what do I do with them?

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Do I need to know how to weld and fab to use these?

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
