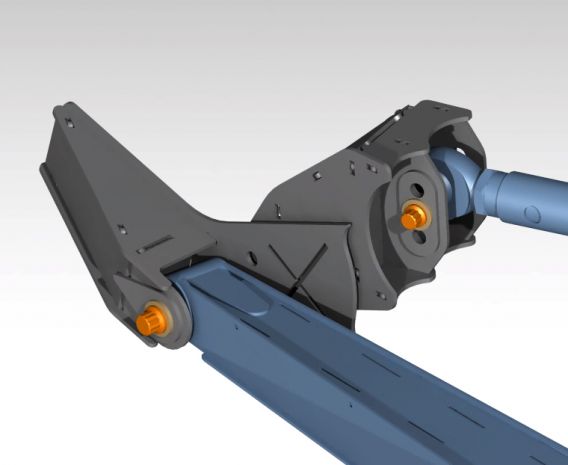

83-97 Ranger EXT-Cab 3/4 Link Mounts for Chassis - Plasma Table Friendly
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Ford Ranger |
|---|---|
| Part Family | Triangulated / Single / Vertical Link Pivot Mounts (chassis tube weld-on) |
| Position | Chassis-side vs housing-side (panhard / link mounts) |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
These are designed for the stock wheelbase measurement and 48" lower links. If you're running a stretched wheelbase, email us and we'll see if there's a file that works for your setup.
These trim to fit your chassis and weld in under the cab, so it's a serious prerunner-level job, not a bolt-on. They're plasma table friendly with little to no bends, but follow the WPO so you keep the strength when you assemble them.
It's a digital download, no physical part ships. You get the DXF cut files (or CAD solids) so you can have these plates cut on your plasma, laser, or waterjet and press any bends yourself.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 83-97 Ranger EXT-Cab 3/4 Link Mounts for Chassis - Plasma Table Friendly is $42.00.
This 83-97 Ranger EXT-Cab 3/4 Link Mounts for Chassis - Plasma Table Friendly is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Ford Ranger plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Ford Ranger category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Vehicle Specific Components, including Ford Ranger, all designed by working fab shops. Browse the Vehicle Specific Components section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
