F100 2" Over Boxed Kingpin Beams Platework - PTF

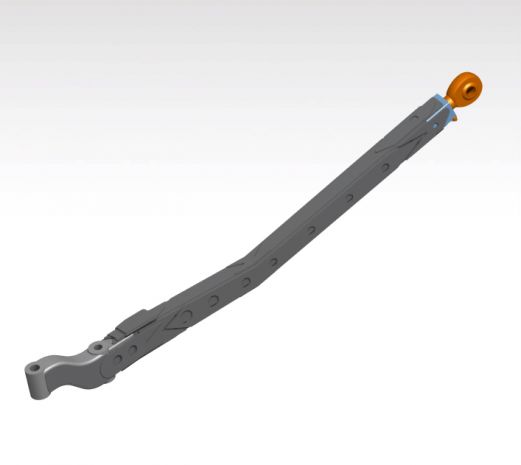

These Beams are designed to work with STOCK Ford Kingpin beam ends and provide 2+" in trackwidth addition per side, so 4" overall increase over stock. Perfect for aftermarket fiberglass like those from AutoFab. They feature boxed construction for strength and weight savings over the stock I beam with the ability to weld in a 1.25" rod end bung. You simply trim your stock kingpin I beam (3/4", 7/8", or 1") and build the beam around those. These work perfecty with the stock replacement beam mounts from JEHC as well.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly - This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
