F100 REAR STEER RADIUS ARMS - PTF

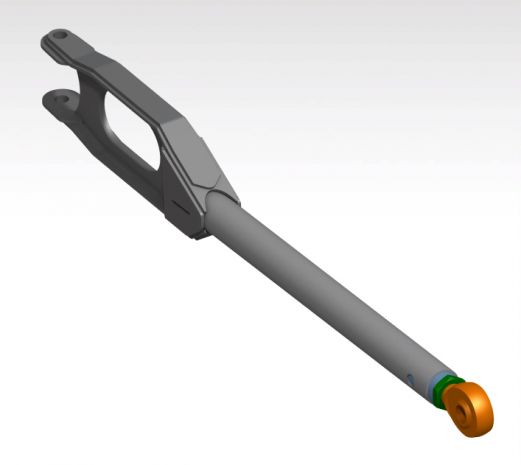

These Radius Arms are designed to work with the 2" over beams from JEHC that utilize the Stock Kingpin Beam ends. They feature a design that allows for the use of rear steering with a single swinger for optimized steering geometry in a simple to build setup. These will help the beams cycle 18" of travel with a solid usable 16" of wheel travel.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly - This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Ford F100 |
|---|---|
| Part Family | Radius Arms |
| Position | Front suspension |
| Build System | I-beam / Twin I-Beam (TTB) |
Frequently Asked Questions
Yep, these are designed to run with the JEHC 2" over beams that use the stock kingpin beam ends. If you're running a different beam setup, shoot us an email and we'll see if another file fits your build.
These are Plasma Table Friendly — all flat plate, no bends. Just follow the WPO during assembly so you keep the strength where it needs to be.
They're set up to let the beams cycle 18" of travel with a solid, usable 16" of wheel travel, and they're built for rear steer with a single swinger for cleaner steering geometry.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The F100 REAR STEER RADIUS ARMS - PTF is $38.00.
This F100 REAR STEER RADIUS ARMS - PTF is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for F100 Front Suspension plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the F100 Front Suspension category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across F100, including F100 Front Suspension, all designed by working fab shops. Browse the F100 section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
