Universal 1.25" Rod End Beam – Fullsize 91″ Trackwidth – PTF

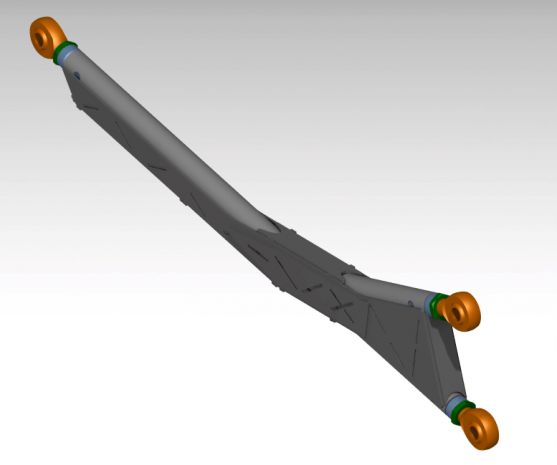

These Universal Adjustable Camber Beams are designed for a “Fullsize” track width with the Universal JEHC Uprights for roughly a 91″ overall. These beams are easy to assembly and cut on a plasma table, they fit a 4’x4′ table and utilize straight tube sections for ease of fabrication.
Designed with 1.25″ rod ends for all the bearing pivots these beams are perfect for lighter duty applications that require camber adjustment and ease of fabrication.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly – This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
