F100 STOCK REPLACEMENT BOLT ON BEAM MOUNT FOR 1.25" ROD END - PTF
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly - This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | Jason Heard |
|---|
Specifications
| Platform | Ford F100 |
|---|---|
| Part Family | Radius-Arm / Beam Chassis Mounts (caster + offset set) |
| Position | Front suspension |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions

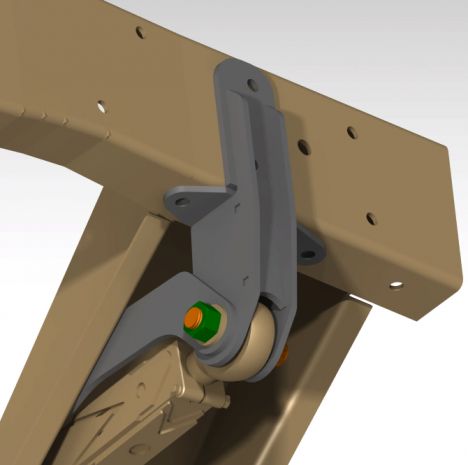

These are designed to bolt right into the stock beam mount placement on the F100, so no new holes to drill. They give you a solid mounting point for a 1.25" rod end beam setup.
These are Plasma Table Friendly — all flat plate, no bends. Just make sure you follow the WPO (weld procedure) steps so the part keeps its strength once you weld it up.
These are built specifically for a 1.25" rod end beam setup. If you're running a different size rod end, shoot us an email and we'll see if another file works for your build.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The F100 STOCK REPLACEMENT BOLT ON BEAM MOUNT FOR 1.25" ROD END - PTF is $18.00.
This F100 STOCK REPLACEMENT BOLT ON BEAM MOUNT FOR 1.25" ROD END - PTF is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for F100 Front Suspension plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the F100 Front Suspension category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across F100, including F100 Front Suspension, all designed by working fab shops. Browse the F100 section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
