F100 BOLT ON RADIUS ARM MOUNT FOR 1.25" ROD END - PTF

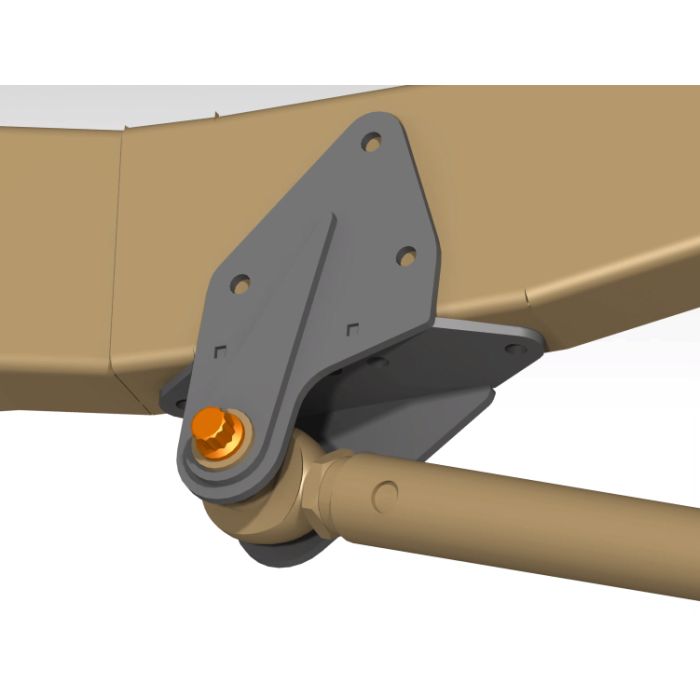

These radius arm mounts are designed to bolt to the factory frame with two bolt hole locators. They feature geometry to complement the JEHC F100 Stock Style Beams and radius arms while providing the mounting location for the 1.25" rod end on high misalignment spacers.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly - This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Ford F100 |
|---|---|
| Part Family | Radius-Arm / Beam Chassis Mounts (caster + offset set) |
| Position | Front suspension |
| Build System | Radius-arm front |
Frequently Asked Questions
They bolt right to the factory frame using two bolt hole locators, so no welding to the frame is needed. They're designed to give you the mounting location for a 1.25" rod end on high misalignment spacers.
These are plasma table friendly, meaning all flat plate with no bends, so they're easy to run on your plasma table. Just make sure you follow the WPO steps so the part keeps its strength once assembled.
They're designed with geometry to complement the JEHC F100 Stock Style Beams and radius arms. If you're running something different, shoot us an email and we'll see if this file works for your build or if there's a better fit.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The F100 BOLT ON RADIUS ARM MOUNT FOR 1.25" ROD END - PTF is $16.00.
