Universal 1.25" Rod End Beam - Midsize 88" Trackwidth - PTF

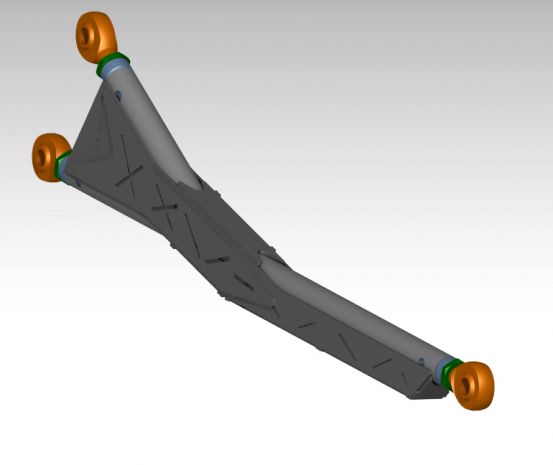

These Universal Adjustable Camber Beams are designed for a "midsize" track width with the Universal JEHC Uprights for roughly an 88" overall. These beams are easy to assemble and cut on a plasma table, they fit a 4'x4' table and utilize straight tube sections for ease of fabrication.
Designed with 1.25" rod ends for all the bearing pivots these beams are perfect for lighter duty applications that require camber adjustment and ease of fabrication.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly - This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
Frequently Asked Questions
These are plasma table friendly, meaning no bends, all flat plate. Just follow the WPO during assembly to keep the strength right, and you're good to fab them up on a 4'x4' table.
These beams are designed around the Universal JEHC Uprights for roughly an 88" overall track width, so they're meant to pair with those. The uprights aren't part of this file, so you'll need to grab those separately to complete the setup.
These are designed for lighter duty applications that need camber adjustment and easy fabrication, running 1.25" rod ends at the bearing pivots. If you're after something for a heavier build, shoot us an email and we'll see if another file fits what you're after.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The Universal 1.25" Rod End Beam - Midsize 88" Trackwidth - PTF is $86.00.
