4 Link kit with 3.5" Fabricated Housing - Plasma Table Fiendly

4 Link kit with 3.5" Fabricated Housing - Plasma Table Fiendly

Be the first to review this product

$185.00

In stock

SKU

600-JEH-126

Details

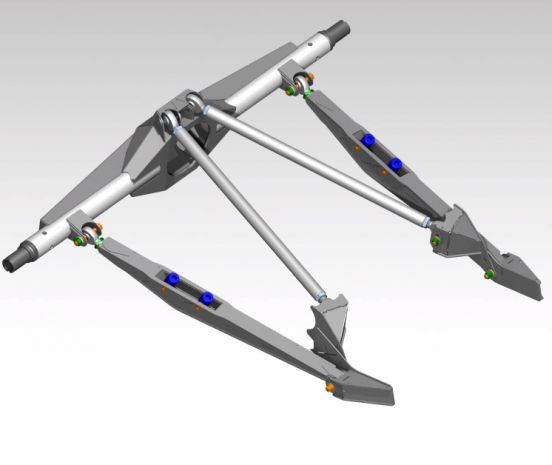

If you are looking to link your ranger this is the setup for you, its designed to take all the guess work out of the equation and make it easy to get your ranger setup properly. Additionally, this setup is plasma table friendly, so all the components are designed to be cut and build from a plasma table with little to no bending involved and MIG welded together. Some however do TIG weld these items so that is also not a problem. This setup comes with all the files you need to complete the kit: The chassis pivot mounts The housing Mounts 3.5" fabricated housing center section and truss cutfiles (not plasma table friendly) The lower link arms The upper link or third link (if it’s a 3 Link kit) This Link setup is designed for the first gen EXT cab ranger platform but it most likely will work on all the ranger platforms with little to no modification. The chassis you see in the renderings is from a 1991 ranger. ***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.*** PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
