8" Tall Angled Rock Race Housing FRONT Upper 4 Link Mount - PTF

$9.00

In stock

SKU

604-JEH-246

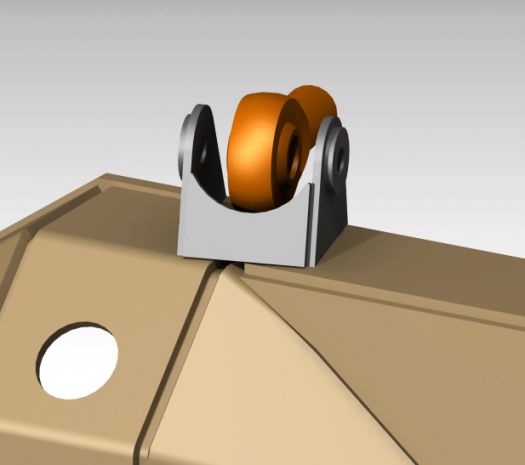

This upper Link Mount is designed for mounting upper links at 10-20 degrees on a flat surface like the top of a fabricated housing with a truss. They are setup for 2.75" wide high misalignment spacers on 5/8" bolts and will clear a 1.25" rod end. You can cut these mounts from either 3/16" or 1/4"material and they are offered in diferent heights.

These upper link mounts set the centerline of the rod end about 8" above the centerline of the housing tubes.

***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***

Plasma Table Friendly - This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
