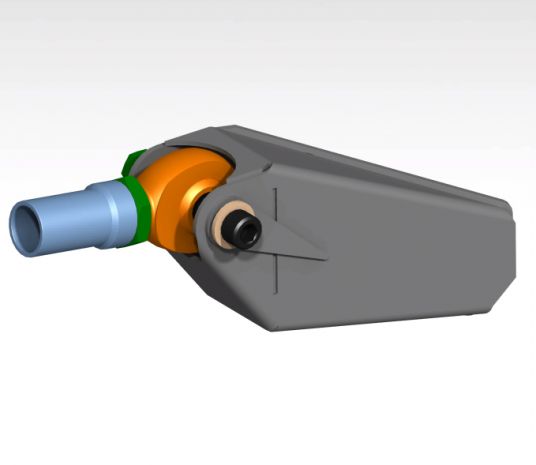

1.25" Rod End on 5/8" bolt Boxed Upper link Mount 20 deg.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
More Information
| Seller | Jason Heard |
|---|
Specifications
| Platform | Luxury Prerunner / Prerunner |
|---|---|
| Part Family | Upper / Lower Link Mounts (housing-mounted) |
| Position | Upper (upper control arm / upper link mount) |
| Build System | 4-link rear |
Frequently Asked Questions
Yep, these are already designed around a 1.25" rod end on a 5/8" bolt, so the hole spacing and clearance is built into the DXF. You just run the files and the mount is good to go for that combo.
The 20 degree locates the upper link to match or mimic the upper links of a 4 link on top of the rear end housing. These were originally built for the Ross King Prerunner K5, so if your setup is different shoot us an email and we can help figure out if this angle works for your build.
You're buying the DXF cut files, so you'll have the plates cut on a plasma, laser, or waterjet and then they need to be bent on a press before you weld them in. They've also got drain holes built in to let water and dirt out so they don't trap rust over time.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 1.25" Rod End on 5/8" bolt Boxed Upper link Mount 20 deg. is $12.00.
This 1.25" Rod End on 5/8" bolt Boxed Upper link Mount 20 deg. is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Upper link Chassis mounts plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Upper link Chassis mounts category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Link Suspension Components, including Upper link Chassis mounts, all designed by working fab shops. Browse the Link Suspension Components section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
