Upper 4 Link Mounts for 5/8" bolts on Spidertrax Housing

Upper 4 Link Mounts for 5/8" bolts on Spidertrax Housing

Be the first to review this product

$14.00

In stock

SKU

604-JEH-021

Details

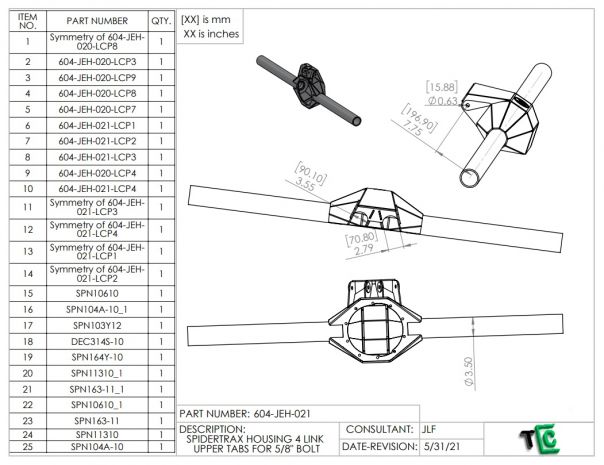

This link mount setup is designed for the Spidertrax housing center section and setup for 5/8" pivot bolts and 1.25" rod ends for traditional 4 link setups, both for desert racing and rock racing. ***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.*** PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.

More Information

More Information
Seller	TEKK Consulting

Specifications

Platform	Aftermarket fab housings (Spidertrax / Trail-Gear / Camburg / Currie F9)
Part Family	Upper / Lower Link Mounts (housing-mounted)
Position	Upper (upper control arm / upper link mount)
Build System	4-link rear

Frequently Asked Questions

Are these flat plate or do I need to press any bends to run them on my plasma table?

These are PTF (Plasma Table Friendly), so it's mostly or all flat plate with little to no bends. Just make sure you follow the WPO (weld procedure) so you keep the strength when you assemble and weld them in.

Will these upper mounts work with 3/4" bolts and 1.5" rod ends, or just the 5/8" setup?

This file is set up specifically for 5/8" pivot bolts and 1.25" rod ends on the Spidertrax housing. If you need a different bolt or rod end size, shoot us an email and we'll see if another file works for your build.

Are these good for both rock racing and desert, or are they more for one or the other?

They're designed for traditional 4 link setups for both desert racing and rock racing, so you're covered either way. Just follow the WPO when you cut and weld them to keep the strength where it needs to be.

How do I get the Upper 4 Link Mounts for 5/8" bolts on Spidertrax Housing after I buy it?

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

How much does the Upper 4 Link Mounts for 5/8" bolts on Spidertrax Housing cost?

The Upper 4 Link Mounts for 5/8" bolts on Spidertrax Housing is $14.00.

Who designs the Upper 4 Link Mounts for 5/8" bolts on Spidertrax Housing?

This Upper 4 Link Mounts for 5/8" bolts on Spidertrax Housing is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.

Where can I get cut files for Spidertrax Housing Truss and Link Mounts?

DIY Off Road has downloadable DXF cut files for Spidertrax Housing Truss and Link Mounts plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Spidertrax Housing Truss and Link Mounts category, or shoot us an email and we will point you to the right files for your build.

Do you have Aftermarket Fabricated Housing Link Mounts and Truss Setups cut files for an off-road or race build?

Yeah — DIY Off Road carries downloadable DXF cut files across Aftermarket Fabricated Housing Link Mounts and Truss Setups, including Spidertrax Housing Truss and Link Mounts, all designed by working fab shops. Browse the Aftermarket Fabricated Housing Link Mounts and Truss Setups section or email us and we will help you track down the right files.

Can you point me to a shop to get these cut and bent?

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

How do I get the files, and what do I do with them?

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Do I need to know how to weld and fab to use these?

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
