49" DUAL Shock Rock Racer Link Arm - PTF

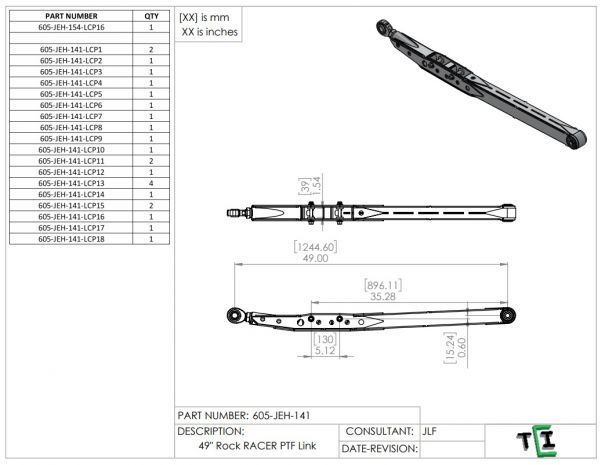

This trailing arm is designed to run a dual shock setup, with shock mounting hole diameter of 1/2" with the option to open the mounting hole to 5/8". Cut out of predominantly 3/16" material, these links don't require bending of plates. Their lower profile layout allows for improved clearance over the trail in the toughest conditions. Designed around the 1" uni-ball bearing wobble stopper kits (front chassis pivot) and 1.25" rod end pack sold on Diyoffroad.com under the fabrication / hard parts section of the site.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
Frequently Asked Questions
These are PTF (Plasma Table Friendly), so they're designed with little to no bends and use mostly flat plate cut from 3/16" material. You can run them straight off your plasma table, just make sure you follow the WPO so you keep the strength during assembly.
The shock mounting holes are designed at 1/2" diameter, with the option to open them up to 5/8" if your setup needs it. They're built around a dual shock layout right out of the gate.
Yep, these are designed around the 1" uni-ball bearing wobble stopper kit for the front chassis pivot and the 1.25" rod end pack, both of which are sold separately on Diyoffroad.com under the fabrication / hard parts section. Just grab those to complete the build.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 49" DUAL Shock Rock Racer Link Arm - PTF is $73.00.
