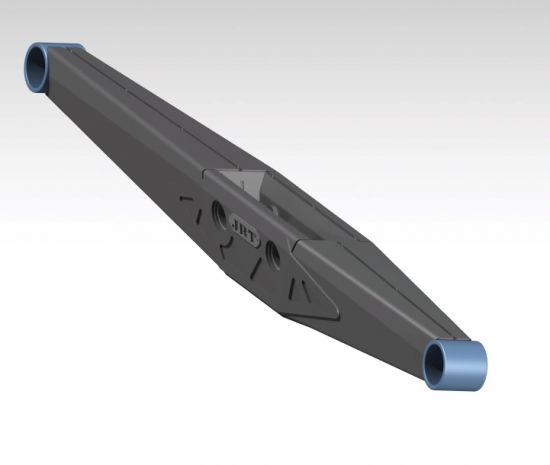

48" Race Link Arm from JRT-Fab (CAD File)
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Frequently Asked Questions
These are designed to be TIG welded from 4130 chromoly, which is what gives them that race-quality strength. Cut your plates from 4130 to match what the files are built for.
These are boxed link arms, so the plates get cut on a CNC plasma, laser, or waterjet and then pressed/bent before you TIG weld them together. Once formed and welded you've got your finished 48" arm.
This is a digital download, so you're getting the cutting files (DXF) or solid (CAD) files for the component, not a physical part. Take those, have your plates cut, then bend and weld them into your race truck build.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 48" Race Link Arm from JRT-Fab (CAD File) is $500.00.
