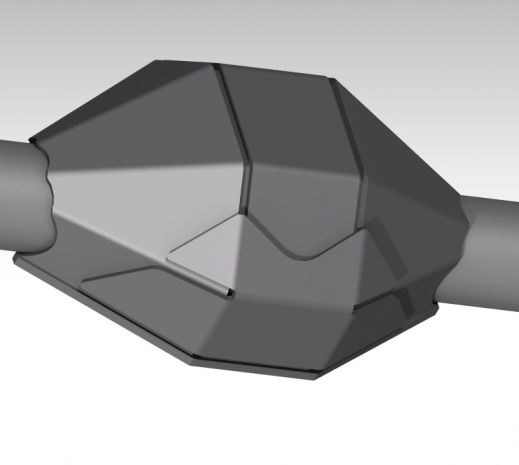

4" Rock Race Fab Housing Center Section
This is a 4″ ROCK RACING Fabricated Housing center section, Designed by JEH Consulting LLC, this housing is designed for the abuse of rock crawling and rock racing with a narrow center section and thick material construction. You can build these housing from mild steel or 4130 Chromoly, MIG or TIG welded, depending on your preference. To complete the housing, we suggest the addition of a backing truss and link mounts, also available on this site.
This housing center section is designed with a 1" pinion offset to the passanger side of the vehicle. The housing tubes are the same length when you center up the center section in the chassis.
Features a 2″ hole pre-cut for the filler and capacity for 10″ ring gear sets, the third member utilizes ARP press in studs (3/8″).
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Rear End Housing / Center Section (fabricated) |
| Position | Equal-length / centered / pinion-centered (truss + link-mount positioning) |
| Build System | Mild-steel MIG vs 4130 chromoly TIG |
Frequently Asked Questions
You can build this center section from either mild steel or 4130 chromoly, whichever you prefer. It welds up fine either MIG or TIG depending on what you're set up for.
This is just the center section. We recommend adding a backing truss and link mounts to complete the housing, and both of those are available here on the site.
It's got capacity for 10" ring gear sets and the third member uses ARP 3/8" press-in studs. It's also designed with a 1" pinion offset to the passenger side, so the housing tubes end up the same length once you center it in the chassis.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 4" Rock Race Fab Housing Center Section is $70.00.
This 4" Rock Race Fab Housing Center Section is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for 4" ROCK Racing Fabricated Housings and Components from Tekk plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the 4" ROCK Racing Fabricated Housings and Components from Tekk category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Fabricated Housings from JEHC INC, including 4" ROCK Racing Fabricated Housings and Components from Tekk, all designed by working fab shops. Browse the Fabricated Housings from JEHC INC section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
