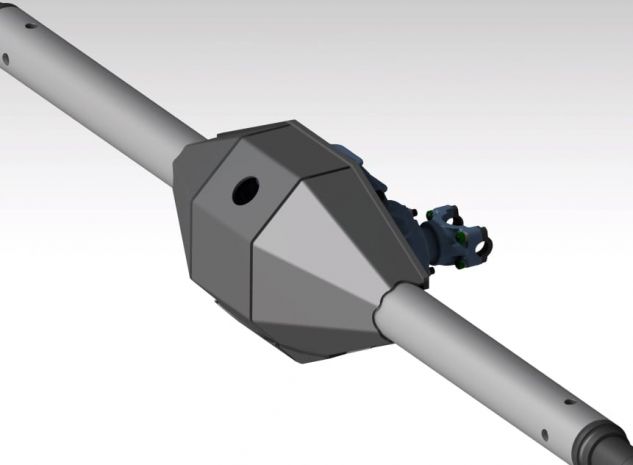

3.5" Tube Fabricated Housing Center Section from JEHC
This is a 3.5″ Fabricated Housing center section, Designed by JEHC, this housing is designed for Desert Racing and pre-running. You can build these housings from mild steel or 4130 Chromoly, MIG or TIG welded, depending on your preference. To complete the housing we suggest the addition of a backing truss and link mounts, also available on this site.
This housing is designed to be Pinion Centered on the center section, the housing tubes will be unequal length.
Features a 2″ hole pre-cut for the filler and capacity for 10″ ring gear sets, the third member utilizes ARP press in studs (3/8″).
***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Details
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Aftermarket fab housings (Spidertrax / Trail-Gear / Camburg / Currie F9) |
|---|---|
| Part Family | Rear End Housing / Center Section (fabricated) |
| Position | Equal-length / centered / pinion-centered (truss + link-mount positioning) |
| Build System | Mild-steel MIG vs 4130 chromoly TIG |
Frequently Asked Questions
Either works, your call. You can build this center section from mild steel or 4130 chromoly, and run it MIG or TIG depending on what you prefer.
This is just the center section. To complete the housing we suggest adding a backing truss and link mounts, which are both available here on the site.
Yep, it's designed pinion centered on the center section, so the housing tubes end up unequal length. It has capacity for 10" ring gear sets and the third member uses 3/8" ARP press-in studs, plus there's a 2" hole pre-cut for the filler.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 3.5" Tube Fabricated Housing Center Section from JEHC is $65.00.
This 3.5" Tube Fabricated Housing Center Section from JEHC is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for 3.5" Desert Racing Fabricated Housings and Components from Tekk plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the 3.5" Desert Racing Fabricated Housings and Components from Tekk category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Fabricated Housings from JEHC INC, including 3.5" Desert Racing Fabricated Housings and Components from Tekk, all designed by working fab shops. Browse the Fabricated Housings from JEHC INC section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
