4 Link for 14 Bolt Mega Truss - Plasma Table Friendly
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly - This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
Specifications
| Platform | GM 10-bolt / 14-bolt |
|---|---|
| Part Family | Upper / Lower Link Mounts (housing-mounted) |
| Position | Equal-length / centered / pinion-centered (truss + link-mount positioning) |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
It's all flat plate, no bends, so you can run these right on your plasma table and weld them up. Just make sure you follow the WPO (weld procedure) so you keep the strength since there's no bends doing that work for you.

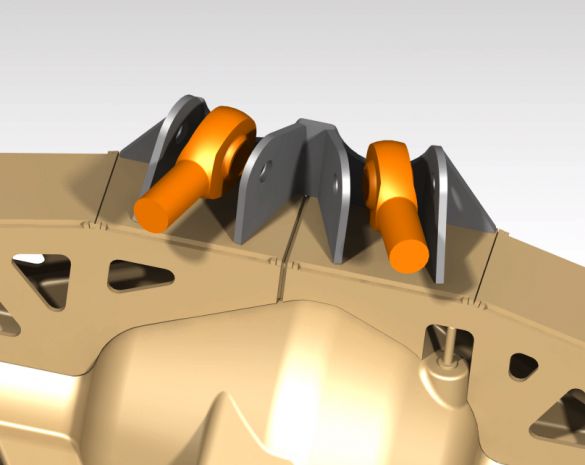

These are built around 1.25" rod ends on a 3/4" bolt, and they come with 2.75" spacers to fit that. The tabs are set at about 40 degrees total, 20 per side.
This 4 link mount is designed specifically to work with the Mega Truss, so it's meant to pair with that setup. If you're running a different truss, shoot us an email and we'll see if there's another file that fits your build.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 4 Link for 14 Bolt Mega Truss - Plasma Table Friendly is $8.00.
