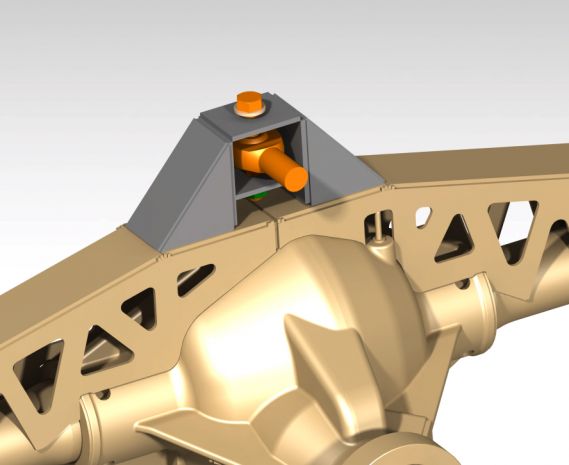

14 Bolt Mega Truss 3 Link - Plasma Table Friendly
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly – This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
Frequently Asked Questions
These are the cut files for the 3 link mount that's designed to work with the 14 Bolt Mega Truss. You'll want the truss files separate — shoot us an email if you need help getting the matching set sorted out.
It's Plasma Table Friendly, meaning it's all flat plate with no bends — easy to cut and assemble on a plasma table. Just make sure you follow the WPO steps so the strength stays where it needs to be.
It's designed for a ¾" bolt running a 1.25" rod end with 2.75" tall spacers. Grab your hardware to match that and you'll be good to weld it in.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 14 Bolt Mega Truss 3 Link - Plasma Table Friendly is $12.00.
