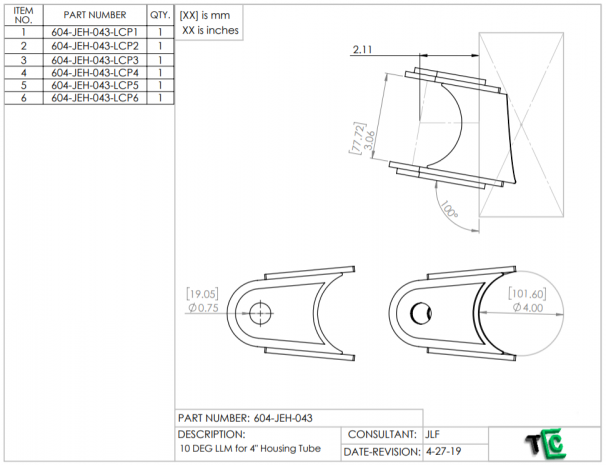

4.0" Tube "Front Mount" (10 deg)
***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly – This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
Frequently Asked Questions
These are made for 4.0" tube, so they'll wrap and weld onto your 4.0" housing tube. If you're running a different tube diameter, shoot us an email and we'll see if we have a file that matches your build.
These need to be press bent after cutting, the DXF is set up so you can run them on a plasma, laser, or waterjet and then bend them in a press. They're not a flat weld-in piece.
You're buying the DXF cut files only, no physical part ships, so you can have these cut and bent at a shop or on your own table. The files don't lock you into a thickness, so cut from whatever plate your build calls for, and email us if you want a shop recommendation for cutting and bending.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 4.0" Tube "Front Mount" (10 deg) is $9.00.
The 4.0" Tube "Front Mount" (10 deg) is offered through the DIY Off Road marketplace, featuring cut-file designs from fabricators including All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for 10 Deg. FRONT Housing Lower Link Mounts plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the 10 Deg. FRONT Housing Lower Link Mounts category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Lower Link Arm Housing Mounts, including 10 Deg. FRONT Housing Lower Link Mounts, all designed by working fab shops. Browse the Lower Link Arm Housing Mounts section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
