14 Bolt MEGA Truss Plasma Table Friendly

Be the first to review this product

$26.00

In stock

SKU

604-JEH-032

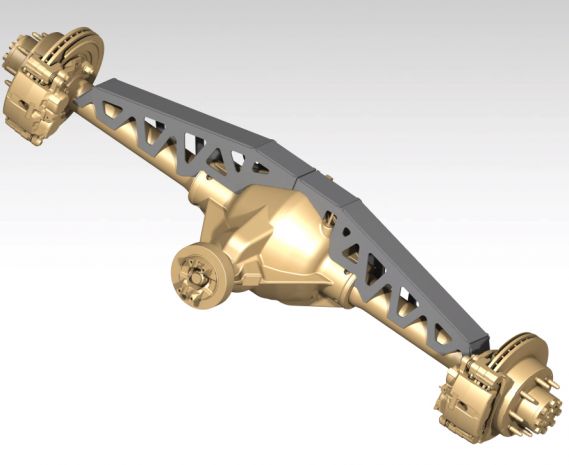

The 14 Bolt MEGA truss is designed for a variety of 14 bolt rear ends, it will work with several link mount options as well. Designed to properly support the housing while not adding extra pounds of weight to the already heavy rear end. You can cut this truss from either 3/16” of ¼” material and is Plasma Table Friendly.

***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***

Plasma Table Friendly - This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.

More Information

More Information
Seller	Jason Heard

Specifications

Platform	GM 10-bolt / 14-bolt
Part Family	Housing Truss / Truss Plate Kits
Build System	Plasma Table Friendly (PTF) flat-plate, no-bend
