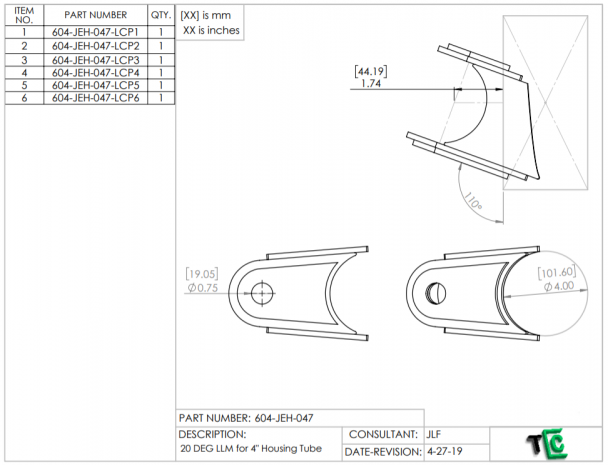

4.0" Tube "Front Mount" (20 deg)
***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly – This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
| Seller | JEH Consulting INC |
|---|
Frequently Asked Questions
The DXF is just the cut profile, so you pick the plate thickness that suits your link setup and material. If you want a recommendation for your build, shoot us an email and we can point you the right way.
These are designed to be cut and then bent (press), so you'll want access to a press brake after you run them on your plasma, laser, or waterjet. Once formed they weld onto your housing at the 20 degree front orientation.
Yep, this file is set up for 4.0" tube on the front lower link housing. If you're running a different tube size, email us and we'll see if another file works for your build.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 4.0" Tube "Front Mount" (20 deg) is $9.00.
This 4.0" Tube "Front Mount" (20 deg) is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for 20 Deg. FRONT Housing Lower Link Mounts plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the 20 Deg. FRONT Housing Lower Link Mounts category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Lower Link Arm Housing Mounts, including 20 Deg. FRONT Housing Lower Link Mounts, all designed by working fab shops. Browse the Lower Link Arm Housing Mounts section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
