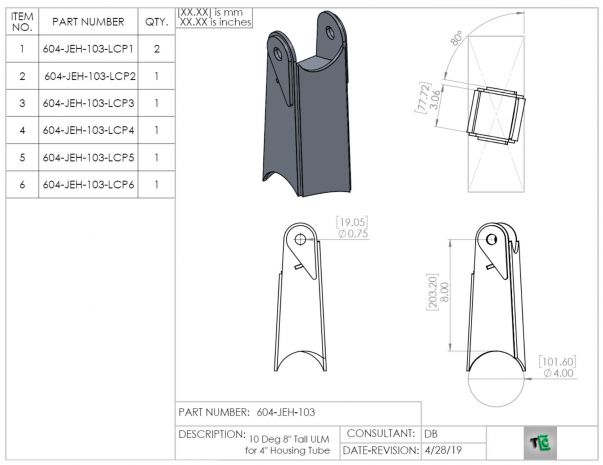

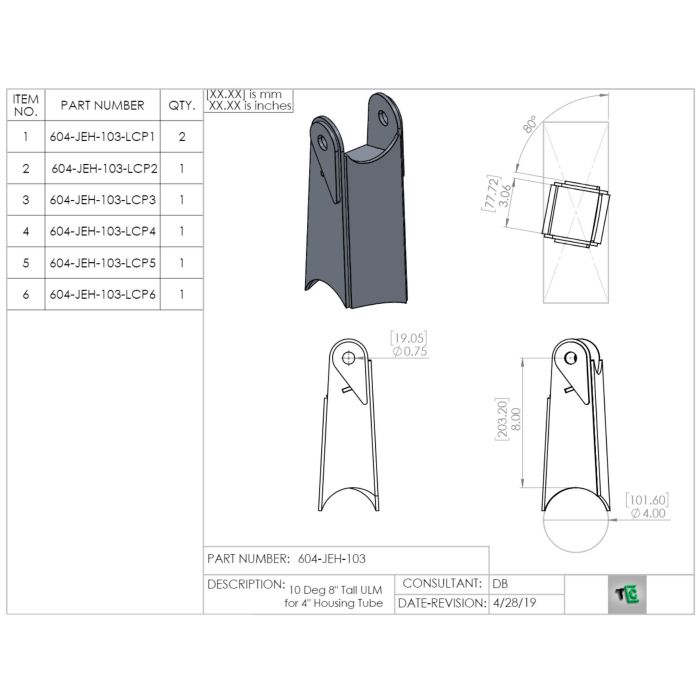

4.0" Tube 8" Height Upper Link Mount "Angled" (10 deg)
***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly – This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
| Seller | TEKK Consulting |
|---|
Frequently Asked Questions
This one's cut to wrap a 4.0" tube, so it'll sit right on a 4.0" housing. If your axle tube is a different size, shoot us an email and we'll see if we've got a file that matches your diameter.
These are designed to be cut flat and then bent (press) to get the angle, so you'll want to run them on a plasma, laser, or waterjet and have them pressed. The 10 deg angle is built into the design for mounting off the housing tube.
The files don't lock you into a thickness, so you cut them in whatever plate suits your build. If you're not sure what makes sense for your link setup, email us and we can connect you with the designer to talk it through.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 4.0" Tube 8" Height Upper Link Mount "Angled" (10 deg) is $9.00.
The 4.0" Tube 8" Height Upper Link Mount "Angled" (10 deg) is offered through the DIY Off Road marketplace, featuring cut-file designs from fabricators including All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for 10 Deg. Upper Link Arm Mounts plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the 10 Deg. Upper Link Arm Mounts category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Upper Link Mounts designed for Mounting off Housing Tube, including 10 Deg. Upper Link Arm Mounts, all designed by working fab shops. Browse the Upper Link Mounts designed for Mounting off Housing Tube section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
