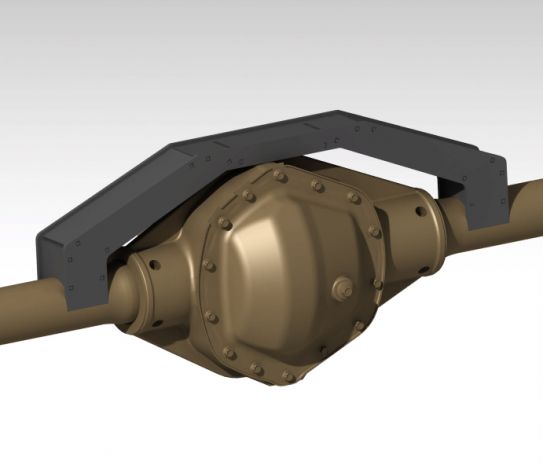

3.25" Tube Universal Rear End Truss - PTF
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly - This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | Jason Heard |
|---|
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Housing Truss / Truss Plate Kits |
| Position | Rear suspension |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
It's designed to be universal and fit a variety of different rear end housings, so it should work for most builds. If you want to be sure it clears yours, shoot us an email with your housing and we'll help you out.
You can run them from either 1/4" or 3/16" material. Either works, just make sure you follow the WPO so you keep the strength in the finished truss.
These are Plasma Table Friendly, meaning no bends — it's all flat plate, so it's easy to cut and assemble with a plasma table. Just follow the WPO steps during assembly to keep it strong.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 3.25" Tube Universal Rear End Truss - PTF is $12.00.
