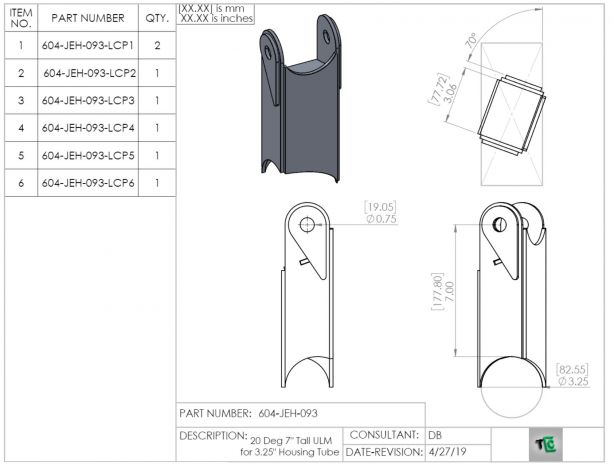

3.25" Tube 7" Height Upper Link Mount "Angled" (20 deg)
***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly – This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
| Seller | JEH Consulting INC |
|---|
Frequently Asked Questions
Yes, these files are cut for a 3.25" housing tube, so they'll radius right up to that diameter. Just double check your actual tube OD before you run them so the saddle sits flush when you weld it on.
The files don't lock you into a specific thickness, so you cut them from whatever plate you're running for your build. If you want a recommendation for your application, shoot us an email and we can point you in the right direction.
These get cut and then press bent, so you'll need a brake or press to form them once they're off your plasma, laser, or waterjet. If you don't have a press, email us and we can recommend a shop to cut and bend them for you.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 3.25" Tube 7" Height Upper Link Mount "Angled" (20 deg) is $9.00.
