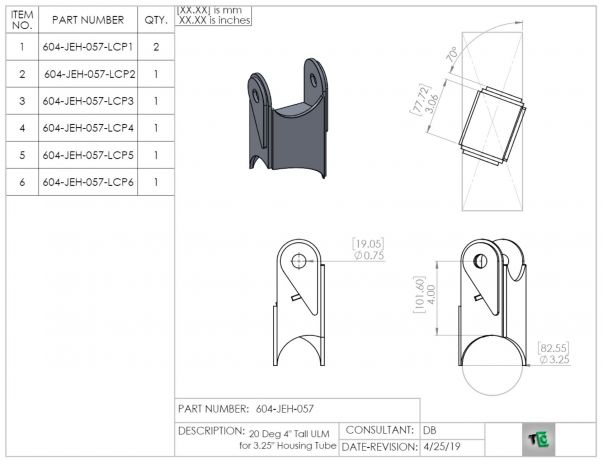

3.25" Tube 4" Height Upper Link Mount "Angled" (20 deg)
***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly – This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
| Seller | JEH Consulting INC |
|---|
Frequently Asked Questions
Yep, this one's drawn for a 3.25" tube so it'll wrap right around that diameter. If your housing tube is a different size, shoot us an email and we'll see if there's another file that matches your build.
These are designed to be cut and then press bent, so you'll want to run them on a plasma, laser, or waterjet and have them folded on a press. The files are the cut profiles for the component — material thickness is your call based on your build, so reach out if you want a recommendation.
Exactly — this is a digital download, so once you pay you get the DXF cut files to run on your CNC plasma, laser, or waterjet. Nothing physical ships; you have the plates cut and bent yourself, or we can point you to a shop that'll cut them for you.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 3.25" Tube 4" Height Upper Link Mount "Angled" (20 deg) is $9.00.
