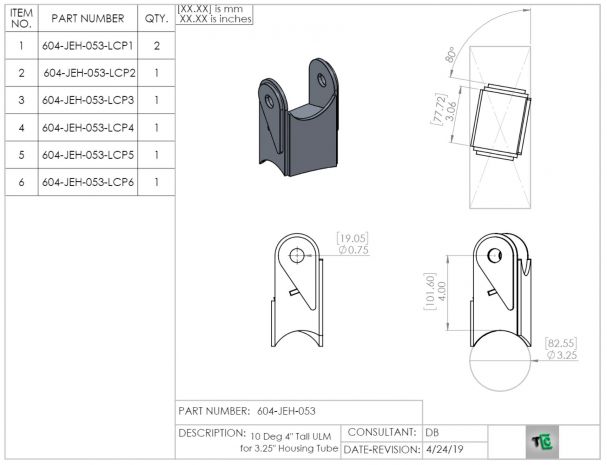

3.25" Tube 4" Height Upper Link Mount "Angled" (10 deg)
***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly – This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
| Seller | JEH Consulting INC |
|---|
Frequently Asked Questions
These files are cut for a 3.25" housing tube, so the radius is dialed in for that size. If you're running a different tube diameter, shoot us an email and we'll see if we've got a file that matches your housing.
These get cut flat on your plasma, laser, or waterjet and then pressed/bent before welding them onto the housing. The DXF is set up for that press operation, so just have them cut and bent before you weld them into your build.
The 10 degree angle is the built-in offset for mounting the upper link off the housing tube so your link geometry works out right. You're getting the DXF cut files for these plates so you can run them on your own table or send them out to get cut.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 3.25" Tube 4" Height Upper Link Mount "Angled" (10 deg) is $9.00.
