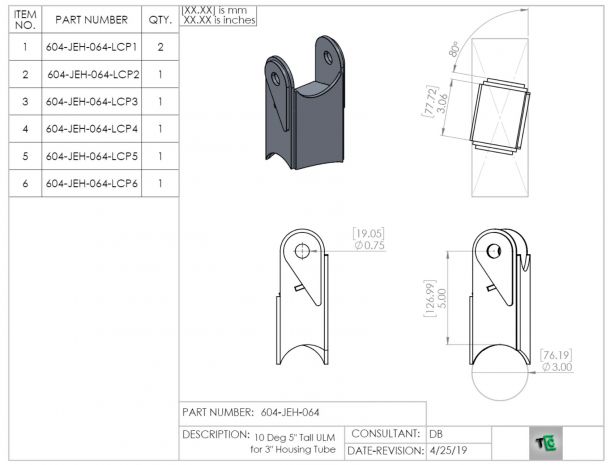

3.0" Tube 5" Height Upper Link Mount "Angled" (10 deg)
***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly – This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
| Seller | JEH Consulting INC |
|---|
Frequently Asked Questions
These are cut for a 3.0" tube specifically, so the radius is dialed in for that. If you're running a different tube diameter, shoot us an email and we'll see if there's another file that matches your housing.
You're getting the DXF cut files, so you'll cut them flat on your plasma, laser, or waterjet, then press the bend yourself. The 10 degree angle is built into the file so it bends into the right shape for that 5" height upper link setup.
This one's designed to mount off the housing tube at 10 degrees, so it's for builds where your upper link needs that angle to clear or line up right. If you're not sure whether you need the angled or straight version, email us and we'll help you figure out what fits your build.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 3.0" Tube 5" Height Upper Link Mount "Angled" (10 deg) is $9.00.
This 3.0" Tube 5" Height Upper Link Mount "Angled" (10 deg) is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for 10 Deg. Upper Link Arm Mounts plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the 10 Deg. Upper Link Arm Mounts category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Upper Link Mounts designed for Mounting off Housing Tube, including 10 Deg. Upper Link Arm Mounts, all designed by working fab shops. Browse the Upper Link Mounts designed for Mounting off Housing Tube section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
