2 Seat CAnAm X3 Cage Design Pack

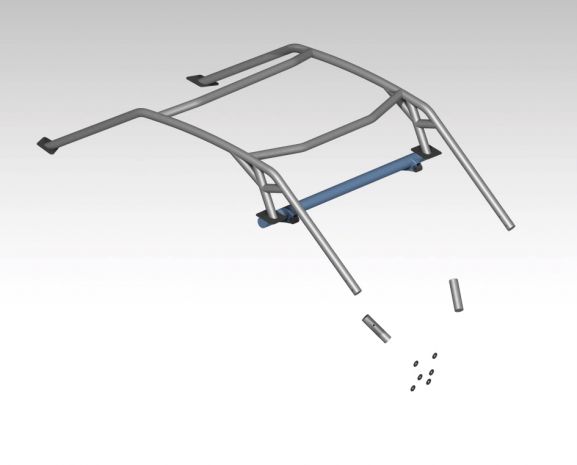

This Design pack is the perfect starting point for anyone looking to design their own cage assembly for the 2 Seat CanAm X3 chassis. We provide the geometry for you to draw a new cage from a solid file sketch that mimics the stock layout with machined cage bungs. Included in this pack are machine files for cage bungs that will match up to the stock chassis.
This pack includes the points for the front A -pillar, B-Pillar, Shock Pocket, and Rear Chassis mounts for both the tube section and rear pivot box.
This is simply the data to design a new cage, this is NOT tube cutting file for a cage assembly, only the information to design a new cage.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Details
This Design pack is the perfect starting point for anyone looking to design their own cage assembly for the 2 Seat CanAm X3 chassis. We provide the geometry for you to draw a new cage from a solid file sketch that mimics the stock layout with machined cage bungs. Included in this pack are machine files for cage bungs that will match up to the stock chassis.
This pack includes the points for the front A -pillar, B-Pillar, Shock Pocket, and Rear Chassis mounts for both the tube section and rear pivot box.
This is simply the data to design a new cage, this is NOT tube cutting file for a cage assembly, only the information to design a new cage.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Can-Am Maverick (X3 / Sport / Maverick R) |
|---|---|
| Part Family | UTV Control / Trailing Arms & Cage Design Packs |
Frequently Asked Questions
This is just the data to design your own cage from — it gives you the chassis points and stock layout to sketch your new cage off of. It is NOT tube cutting files for a finished cage assembly, so you'll be designing the actual tubework yourself.
You get the geometry for the front A-pillar, B-pillar, shock pocket, and rear chassis mounts for both the tube section and rear pivot box, plus machine files for cage bungs that match up to the stock X3 chassis. It's the solid file sketch and bung files to start designing from, not a ready-to-cut cage.
This pack is built off the 2 seat 2018-21 CanAm X3 XRS chassis, so the points match that layout. If you're running a 4 seat, email us and we'll see if there's another file that fits your build.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 2 Seat CAnAm X3 Cage Design Pack is $600.00.
This 2 Seat CAnAm X3 Cage Design Pack is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for 2018-21 CanAm X3 XRS plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the 2018-21 CanAm X3 XRS category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across 3D Scan CAD Files, including 2018-21 CanAm X3 XRS, all designed by working fab shops. Browse the 3D Scan CAD Files section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
