Front Bulkhead Scan Pack - 2024 MAV-R
Details
Pack Includes the Following:

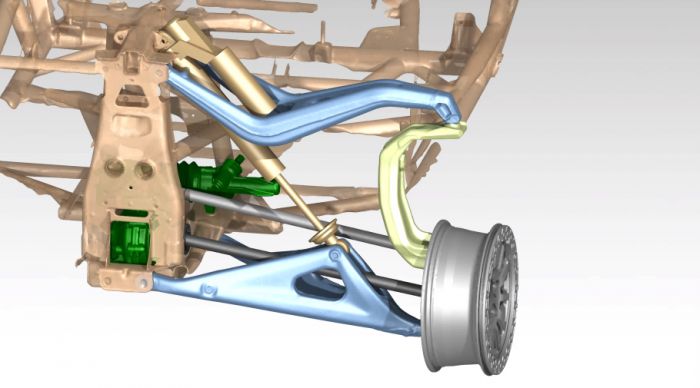

Front lower Arms, Upper Arms, Sway bar Arm, Upright, Coilovers (top and bottom), and a dencently "meh" scan of the chassis with the pickup points.
Â
Its perfect to get you going in the right direction to design some new arms/suspension for the front of the MAV R or use this to develop a new front bulkhead / tube chassis car.Â
This is the exact file pack used to develop tube chassis race car platforms for the R.Â
Â
This 3D scan data pack was put together by the guys at JEHC and features the Scan Mesh file in a STEP file format along with critical geometry blocks allowing you to easily pull center points and relevant data for design.
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Can-Am Maverick (X3 / Sport / Maverick R) |
|---|---|
| Part Family | 3D Scan / CAD Reference Files |
| Position | Front suspension |
Frequently Asked Questions
These are 3D scan files, not cut files. You get a scan mesh in STEP format plus critical geometry blocks so you can pull center points and pickup geometry to design your own arms and bulkhead off of.
You get the front lower arms, upper arms, sway bar arm, upright, coilovers (top and bottom), and a decent scan of the chassis with the pickup points. It's the same file pack used to develop tube chassis race car platforms for the R.
Both. It's perfect for designing new arms/suspension up front, or for developing a full new front bulkhead / tube chassis car since it includes the chassis scan with the pickup points.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The Front Bulkhead Scan Pack - 2024 MAV-R is $800.00.
This Front Bulkhead Scan Pack - 2024 MAV-R is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for 2024 CanAm Maverick R plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the 2024 CanAm Maverick R category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across 3D Scan CAD Files, including 2024 CanAm Maverick R, all designed by working fab shops. Browse the 3D Scan CAD Files section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
Reviews
No reviews yet.
