Details

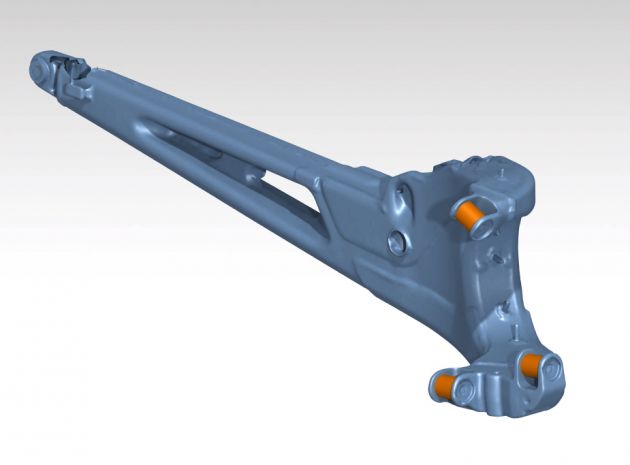

This Arm scan is perfect for developing a stock replacement arm or extended arms, the main scan is in blue while the "hard" points are in Orange. These hard points are measured off the stock arm then imported into the scan for accuracy. What you see is a direct reflection of the real work arm in CAD.
These arms are delivered in STEP file format.
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Can-Am Maverick (X3 / Sport / Maverick R) |
|---|---|
| Part Family | 3D Scan / CAD Reference Files |
| Position | Rear suspension |
Frequently Asked Questions
This one's a 3D scan delivered as a STEP file, not a flat DXF for cutting. It's meant for developing your own stock-replacement or extended arm in CAD, with the hard points already measured off the real arm for accuracy.
It's scanned off the 2024 CanAm Maverick R rear arm, so that's what it's confirmed for. If you're working on a different model, shoot us an email and we'll see if there's another scan that fits your build.
The orange points are the critical mounting/pivot locations measured straight off the stock arm and brought into the scan, so your pickups stay accurate when you design a replacement or extended arm. The blue is the main body scan itself.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 2024 MAV R REAR Arm is $240.00.
This 2024 MAV R REAR Arm is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for 2024 CanAm Maverick R plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the 2024 CanAm Maverick R category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across 3D Scan CAD Files, including 2024 CanAm Maverick R, all designed by working fab shops. Browse the 3D Scan CAD Files section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
