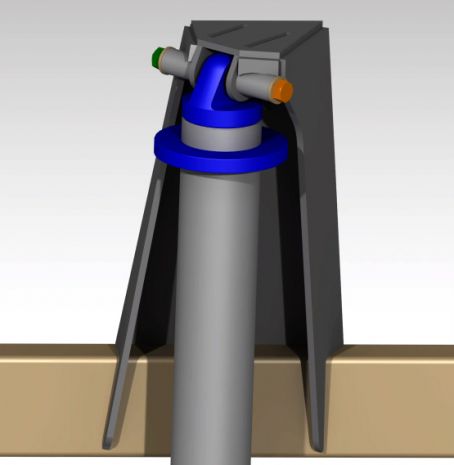

12" 45 DEG Tall Shock Tower for 2.5" Coilover - PTF
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly – This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | JEH Consulting INC |
|---|
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Coilover Shock Towers |
| Position | Straight (0 deg) vs angled (10 / 20 / 34 / 45 deg) mount geometry |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
These are Plasma Table Friendly, so it's all flat plate with no bends needed. Just follow the WPO (weld prep order) steps when you assemble them to keep the strength right.
They're designed to mount to a straight frame rail, but you can trim and sand them down to fit just about any frame rail. They mount off the side of the frame for a 2.5" coilover.
You're buying the DXF cut files, not a physical part. Take them and have the plates cut from a CNC plasma, laser, or waterjet, then weld them up per the instructions.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 12" 45 DEG Tall Shock Tower for 2.5" Coilover - PTF is $36.00.
This 12" 45 DEG Tall Shock Tower for 2.5" Coilover - PTF is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for 45 DEG Shock Towers for 2.5" Coilovers plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the 45 DEG Shock Towers for 2.5" Coilovers category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Universal Shock Towers, including 45 DEG Shock Towers for 2.5" Coilovers, all designed by working fab shops. Browse the Universal Shock Towers section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
Reviews
No reviews yet.
