3 LINK MOUNT FOR SPIDERTRAX HOUSING - EQUAL LENGTH AXLES - PTF

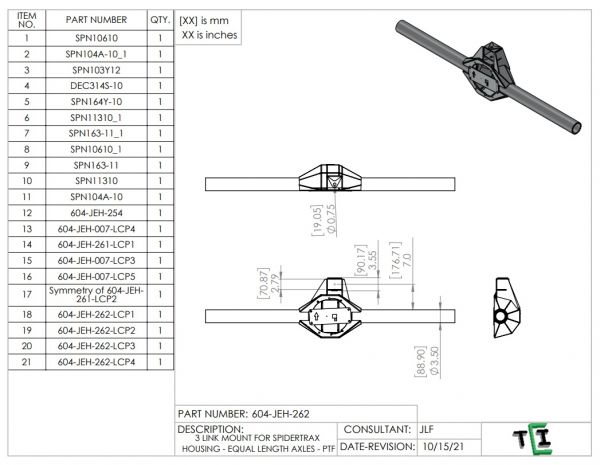

This link mount setup is for Equal Length Axles and is designed for the Spidertrax housing center section and setup for 3/4" pivot bolt and 1.25" rod end on a 2.75” spread for traditional 3 link setups, both for desert racing and rock racing.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
This link mount setup is for Equal Length Axles and is designed for the Spidertrax housing center section and setup for 3/4" pivot bolt and 1.25" rod end on a 2.75” spread for traditional 3 link setups, both for desert racing and rock racing.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Aftermarket fab housings (Spidertrax / Trail-Gear / Camburg / Currie F9) |
|---|---|
| Part Family | Upper / Lower Link Mounts (housing-mounted) |
| Position | Equal-length / centered / pinion-centered (truss + link-mount positioning) |
| Build System | 3-link rear |
Frequently Asked Questions
This particular file is designed for the Spidertrax housing center section with Equal Length Axles. If you're running a different axle config, shoot us an email and we'll see if we've got another file that matches your setup.
Yep, these are PTF (Plasma Table Friendly), so it's mostly or all flat plate with little to no bends, which makes cutting and assembly easy on a plasma table. Just make sure you follow the WPO steps so the strength stays where it needs to be.
These are designed for a 3/4" pivot bolt and a 1.25" rod end on a 2.75" spread for a traditional 3 link, good for both desert and rock racing. Just keep that in mind when you're sourcing your hardware to weld this into your build.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 3 LINK MOUNT FOR SPIDERTRAX HOUSING - EQUAL LENGTH AXLES - PTF is $14.00.
This 3 LINK MOUNT FOR SPIDERTRAX HOUSING - EQUAL LENGTH AXLES - PTF is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Spidertrax Housing Truss and Link Mounts plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Spidertrax Housing Truss and Link Mounts category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Aftermarket Fabricated Housing Link Mounts and Truss Setups, including Spidertrax Housing Truss and Link Mounts, all designed by working fab shops. Browse the Aftermarket Fabricated Housing Link Mounts and Truss Setups section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
