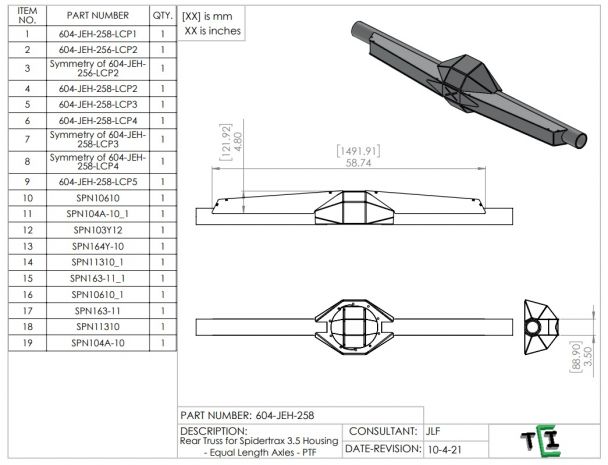

Rear Truss for Spidertrax 3.5 Housing - Equal Length Axles - PTF

This one's specifically centered for the equal length axle setup on the Spidertrax 3.5 housing, so it's built around that geometry. If you're running offset/non-equal length axles, shoot us an email and we'll see if there's another file that lines up with your housing.

Yep, it's PTF (Plasma Table Friendly) — a simple no-bend style that's mostly flat plate, so it's easy to cut and assemble on a CNC plasma. Just make sure you follow the WPO steps during fabrication so you keep the strength in the finished truss.

Nothing physical ships — this is a digital asset, so you're getting the DXF cutting files (or CAD/solid files) to have cut on a plasma, laser, or waterjet. After that you weld it up to your housing per the WPO. If you need a shop to cut the plates for you, email us and we can point you to one.

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

The Rear Truss for Spidertrax 3.5 Housing - Equal Length Axles - PTF is $12.00.

This Rear Truss for Spidertrax 3.5 Housing - Equal Length Axles - PTF is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.

DIY Off Road has downloadable DXF cut files for Spidertrax Housing Truss and Link Mounts plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Spidertrax Housing Truss and Link Mounts category, or shoot us an email and we will point you to the right files for your build.

Yeah — DIY Off Road carries downloadable DXF cut files across Aftermarket Fabricated Housing Link Mounts and Truss Setups, including Spidertrax Housing Truss and Link Mounts, all designed by working fab shops. Browse the Aftermarket Fabricated Housing Link Mounts and Truss Setups section or email us and we will help you track down the right files.

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
