Universal 1" Uni-Ball Beam – Midsize 88″ Trackwidth – PTF

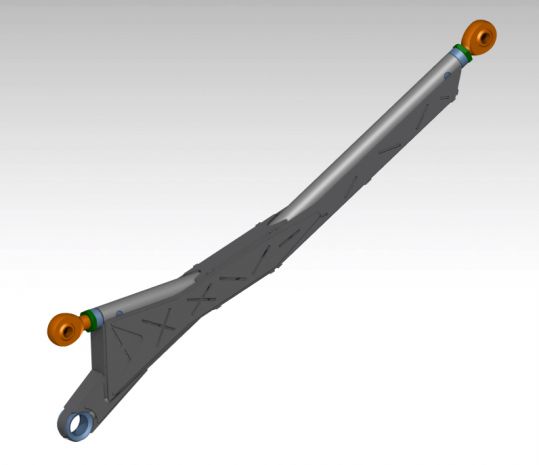

These Universal Adjustable Camber Beams are designed for a “Midsize” track width with the Universal JEHC Uprights for roughly an 88″ overall. These beams are easy to assemble and cut on a plasma table, they fit a 4’x4′ table and utilize straight tube sections for ease of fabrication.
Designed with 1.25″ rod ends and a 1″ uni-ball bearing for the lower upright mount these beams are built for serious applications. Stronger than the similar rod end beams these are a little more complicated to fabricate and designed for heavier vehicles.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly – This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Universal I-Beams / Twin I-Beam (TTB) Beams |
| Position | Front suspension |
| Build System | I-beam / Twin I-Beam (TTB) |
Frequently Asked Questions
These are designed to run with the Universal JEHC Uprights for that roughly 88" track width, but this file is just the beam cut files. You'll want to grab the uprights separately to complete the setup.
Yep, these are designed to fit a 4'x4' table and they're all flat plate with no bends, so they're plasma table friendly. Just follow the WPO steps so you keep the strength when you assemble them.
These use a 1" uni-ball bearing at the lower upright mount with 1.25" rod ends, which makes them stronger than the similar rod end beams. They're a little more involved to fabricate but built for heavier vehicles and serious applications.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The Universal 1" Uni-Ball Beam – Midsize 88″ Trackwidth – PTF is $92.00.
This Universal 1" Uni-Ball Beam – Midsize 88″ Trackwidth – PTF is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Uncategorized plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Uncategorized category, or shoot us an email and we will point you to the right files for your build.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
