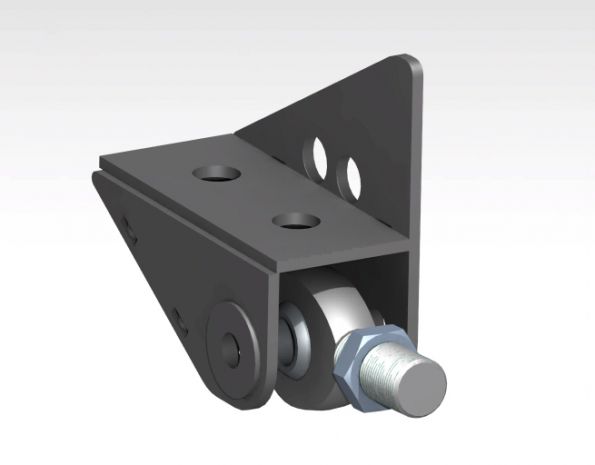

UNIVERSAL RADIUS ARM MOUNT - CHASSIS SIDE

They're designed for 1.25" rod ends on a 3" spread with 3/4" bolt spacers. If you're running something different, shoot us an email and we'll see if another file works for your build.

These are PTF (Plasma Table Friendly), so they're mostly or all flat plate with little to no bends, which makes cutting and assembly easy. Just make sure you follow the WPO steps so you keep the strength in the component.

This is a digital asset, so you're getting the DXF cut files (or CAD solids) to have the plates cut and pressed on a CNC plasma, laser, or waterjet. If you need a shop to cut or bend them, email us and we'll point you to someone.

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

The UNIVERSAL RADIUS ARM MOUNT - CHASSIS SIDE is $12.00.

This UNIVERSAL RADIUS ARM MOUNT - CHASSIS SIDE is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.

DIY Off Road has downloadable DXF cut files for Universal Beam and Radius Arm Chassis Mounts plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Universal Beam and Radius Arm Chassis Mounts category, or shoot us an email and we will point you to the right files for your build.

Yeah — DIY Off Road carries downloadable DXF cut files across Universal Beam Components, including Universal Beam and Radius Arm Chassis Mounts, all designed by working fab shops. Browse the Universal Beam Components section or email us and we will help you track down the right files.

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
